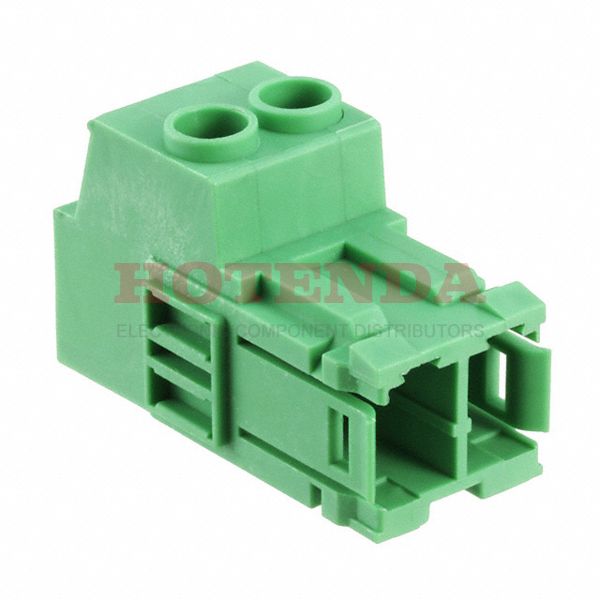

Name: 1718261
Brand: Phoenix Contact
SKU: 1718261
Price: 5.46000 USD
Availability: InStock

new-10%

1718261

Manufacturer part number:1718261

Manufacturer:Phoenix Contact

Description:1718261 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1718261 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	1.50003kg
Packaging	Bulk
Published	2011
Series	COMBICON IPC
Feature	Latch Lock
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Plug, Screw
Type	Plug, Male Pins
Number of Positions	2
Color	Green
Number of Rows	1
Voltage - Rated	1kV
HTS Code	8536.69.40.40
Pitch	0.300 7.62mm
Insulation Height	0.902 22.90mm
Current Rating	41A
Termination Style	Screw - Rising Cage Clamp
Voltage	600V
Number of Levels	1
Current	41A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	8 AWG
Number of Decks	1
Wire Gauge or Range - AWG	8-24 AWG
Voltage - IEC	1kV
Torque - Screw	0.7-0.8 Nm (6.2-7.1 Lb-In)
Number of Ways	2
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-10mm2
Wire Strip Length	10mm
Screw Size	M3
Height	22.9mm
Length	15.24mm
Width	36.55mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1718261 Product Details

1718261 Overview

The product is packaged in Plug, Screw.Mounting type Free Hanging (In-Line) is assigned to the device.A Bulk case is used for packaging.Among the products in the COMBICON IPC Series, it is one of the most popular.Its Latch Lock feature renders it more powerful in many ways.Part Free Hanging is mounted to the part.There are a number of benefits that this part has in common with other Plug, Male Pins products.
