1718618

1718618

1718618

Phoenix Contact

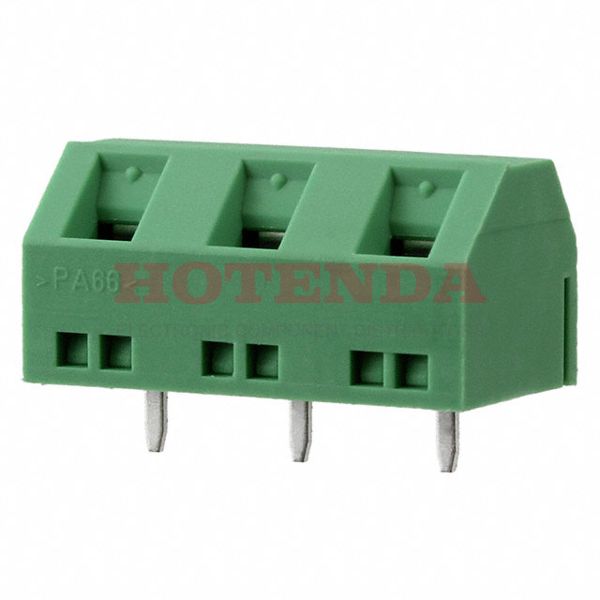

0.300 7.62mm Green Bulk Polyamide (PA), Nylon Through Hole 55° (125°) Angle with Board Screw - Rising Cage Clamp 1 Levels 14-30 AWG COMBICON GSMKDSN

SOT-23

1718618 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact MaterialTin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 40.999988g
PackagingBulk
Series COMBICON GSMKDSN
Published 2011
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Color Green
Voltage - Rated 630V
Additional FeaturePOLYAMIDE, 94V-2
Pitch 0.300 7.62mm
Current Rating16A
Wire Gauge14-30 AWG
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 14 AWG
Terminal and Terminal Block Type MODULAR TERMINAL BLOCK
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 3
Safety Approval UL; CSA
Mating Orientation 55° (125°) Angle with Board
Wire TerminationScrew - Rising Cage Clamp
Screw Thread M3
Number of Positions Per Level 3
Height 14.5mm
Length 12mm
Width 22.86mm
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-2
In-Stock:2969 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$5.979917$5.979917
10$5.641431$56.41431
100$5.322104$532.2104
500$5.020853$2510.4265
1000$4.736654$4736.654

1718618 Product Details

1718618 Overview


Packaging is Screw.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the COMBICON GSMKDSN Series, it can be found in this category.There are also other features such as POLYAMIDE, 94V-2, to name only a few.In this case, Through Hole mounts the part.

1718618 Features


COMBICON GSMKDSN series


1718618 Applications


There are a lot of Phoenix Contact
1718618 Terminal Blocks applications.


  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
  • LED municipal outdoor and street lighting
