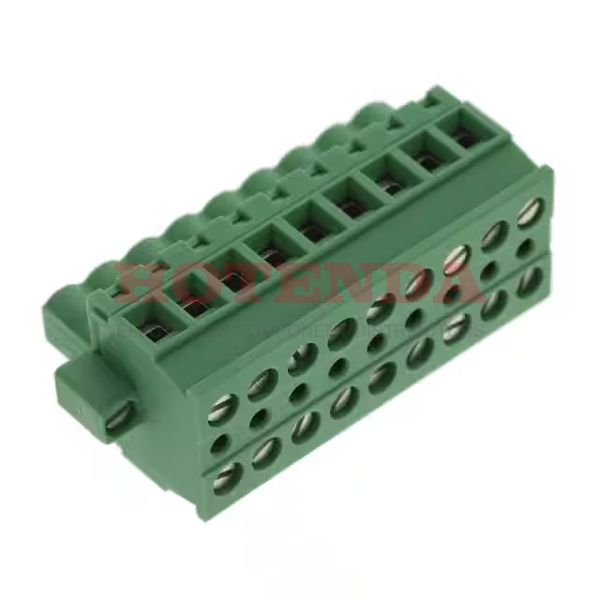

Name: 1719163
Brand: Phoenix Contact
SKU: 1719163
Price: 24.57000 USD
Availability: InStock

new

1719163

Manufacturer part number:1719163

Manufacturer:Phoenix Contact

Description:1719163 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1719163 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	30.774003g
Packaging	Bulk
Published	2011
Series	COMBICON TVMSTB
Feature	Mating Flange, Retention Latches
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Connector Type	Screw
Type	Plug, Female Sockets
Number of Positions	9
Color	Green
Number of Rows	1
Voltage - Rated	250V
Pitch	0.200 5.08mm
Insulation Height	1.016 25.81mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1 (Mate), 2 (Input)
Current	10A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Positions Per Level	9 (Mate), 18 (Input)
Number of Ways	9
Plug Wire Entry	90° and 270°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	12A
Screw Size	M3
Wire Cross Section	2.5 mm2
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1719163 Product Details

1719163 Overview

Currently, it is packaged in Screw.Mounting type Free Hanging (In-Line) is assigned to the device.A Bulk case is used to package the product.It's part of the COMBICON TVMSTB Series.Its Mating Flange, Retention Latches feature makes it more powerful in a number of ways.It's mounted by Free Hanging.As with other Plug, Female Sockets products, this part has a lot of benefits.
