Home

1719215

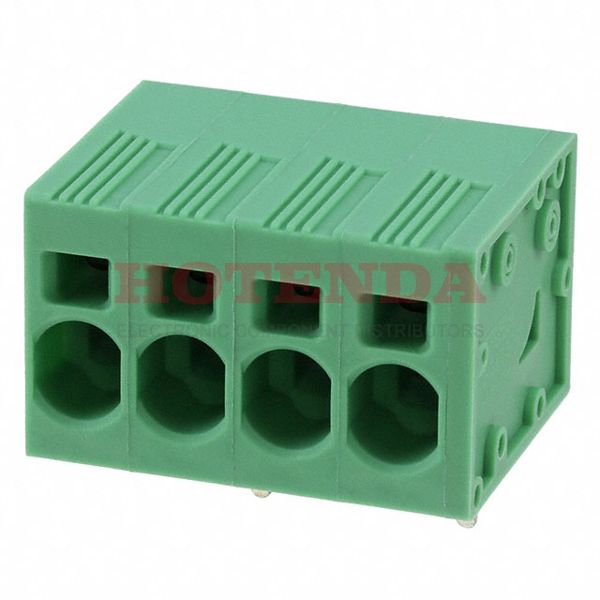

  • 1719215 - 0.295 7.50mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screwless - Spring Cage, Tension Clamp 1 Levels 8-24 AWG COMBICON SPT
  • 1719215 - 0.295 7.50mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screwless - Spring Cage, Tension Clamp 1 Levels 8-24 AWG COMBICON SPT

1719215

1719215

Phoenix Contact

0.295 7.50mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screwless - Spring Cage, Tension Clamp 1 Levels 8-24 AWG COMBICON SPT

SOT-23

1719215 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Mount Through Hole
Mounting Type Through Hole
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 6.999837kg
PackagingBulk
Series COMBICON SPT
Published 2015
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Number of Positions 4
Color Green
Number of Rows 1
Gender Male
Voltage - Rated 1kV
Pitch 0.295 7.50mm
Orientation Straight
Depth 19.6mm
Reach Compliance Code unknown
Current Rating41A
Approval Agency CB, UL
Wire Gauge8-24 AWG
Voltage 600V
Number of Levels 1
Current 35A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 8 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Ways 4
Safety Approval UL
Mating Orientation Horizontal with Board
Wire TerminationScrewless - Spring Cage, Tension Clamp
Stripping Length 15mm
Wire Cross Section 6 mm2
Fastening Method SPRING LOADED
Length 30mm
Width 24.15mm
RoHS StatusRoHS Compliant
In-Stock:903 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$2.173287$2.173287
10$2.050270$20.5027
100$1.934217$193.4217
500$1.824733$912.3665
1000$1.721446$1721.446

1719215 Product Details

1719215 Overview


Mounting type is Through Hole.To package the product, we use a Bulk case.This product is from the COMBICON SPT Series.Mounted by Through Hole.

1719215 Features


COMBICON SPT series


1719215 Applications


There are a lot of Phoenix Contact
1719215 Terminal Blocks applications.


  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
