Name: 1720046
Brand: Phoenix Contact
SKU: 1720046
Price: 2.92000 USD
Availability: InStock

new-10%

1720046

Manufacturer part number:1720046

Manufacturer:Phoenix Contact

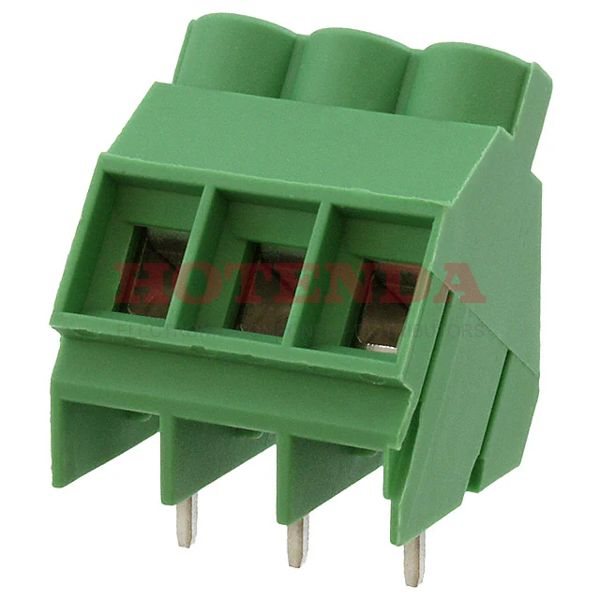

Description:0.250 6.35mm Green Bulk Polyamide (PA), Nylon Through Hole 35° (145°) Angle with Board Screw - Rising Cage Clamp 1 Levels 10-30 AWG COMBICON SMKDS

Case Package:SOT-23

Datasheet:1720046 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	8.500009g
Packaging	Bulk
Series	COMBICON SMKDS
Published	2012
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Color	Green
Number of Rows	1
Voltage - Rated	500V
Additional Feature	PA, 94V-2
Pitch	0.250 6.35mm
Depth	18.5mm
Current Rating	32A
Number of Contacts	3
Wire Gauge	10-30 AWG
Voltage	300V
Max Supply Voltage	500V
Max Current Rating	32A
Number of Levels	1
Current	30A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	10 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	3
Safety Approval	UL
Mating Orientation	35° (145°) Angle with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Wire Cross Section	4 mm2
Height	19.05mm
Length	18.5mm
Width	26.5mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1720046 Product Details

1720046 Overview

Through Hole is the mount type.Bulk cases are used to package the product.This product is in the COMBICON SMKDS Series.Also, there's PA, 94V-2, to name a few.As a result of its Interlocking (Side) feature, it possesses a great deal of power.There's a Through Hole on the part.This chip should not be supplied with voltage greater than 500V volts.
