Name: 1725038
Brand: Phoenix Contact
SKU: 1725038
Price: 3.36000 USD
Availability: InStock

new-10%

1725038

Manufacturer part number:1725038

Manufacturer:Phoenix Contact

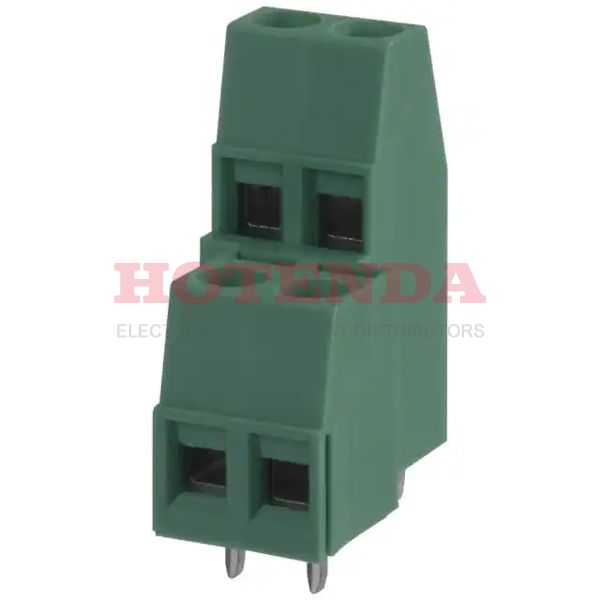

Description:0.200 5.08mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 14-30 AWG COMBICON MKKDS

Case Package:SOT-23

Datasheet:1725038 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Number of Pins	4
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	7.08001g
Packaging	Bulk
Series	COMBICON MKKDS
Published	2001
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Max Operating Temperature	100°C
Min Operating Temperature	-20°C
Color	Green
Number of Rows	2
Voltage - Rated	250V
Pitch	0.200 5.08mm
Orientation	Straight
Depth	21.4mm
Current Rating	17.5A
Voltage - Rated AC	250V
Approval Agency	CSA, UL
Lead Pitch	5.08mm
Wire Gauge	14-30 AWG
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	22A
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	14 AWG
Wire/Cable Gauge	30 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	2
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Stripping Length	7mm
Number of Lines	2
Test Voltage	4kV
Height	21.4mm
Length	17.78mm
Width	25.2mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1725038 Product Details

1725038 Overview

It comes in Screw packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the COMBICON MKKDS Series of products.The device is equipped with 4 pins.It's best to use it when the temperature is below 100°C.This device must operate at a minimum temperature of -20°C.Its Interlocking (Side) feature renders it more powerful in many ways.The part is mounted by Through Hole.The supply voltage of this chip should not exceed 250V.
