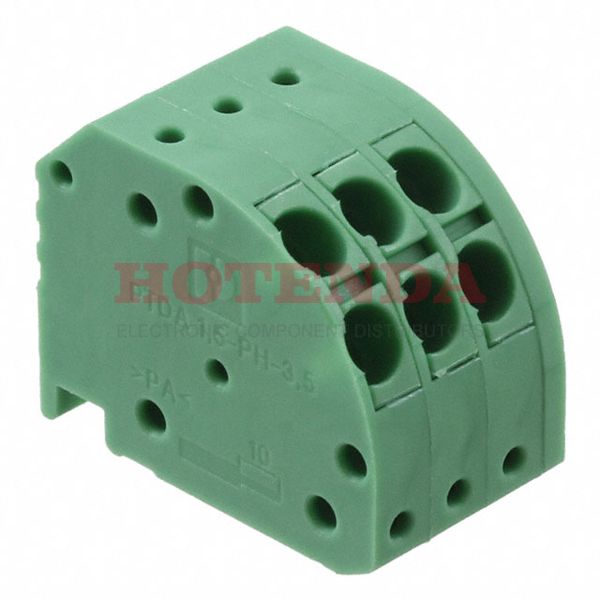

Name: 1725120
Brand: Phoenix Contact
SKU: 1725120
Price: 1.51000 USD
Availability: InStock

new-10%

1725120

Manufacturer part number:1725120

Manufacturer:Phoenix Contact

Description:1725120 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1725120 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	29.000003g
Packaging	Bulk
Published	2010
Series	COMBICON PTDA
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Type	Plug for Unshrouded Header
Number of Positions	3
Color	Green
Number of Rows	1
Voltage - Rated	160V
Pitch	0.138 3.50mm
Depth	20mm
Insulation Height	0.630 16.00mm
Reach Compliance Code	unknown
Current Rating	8A
Termination Style	Screwless - Spring Cage, Tension Clamp
Approval Agency	UL
Voltage	300V
Max Supply Voltage	300V
Max Current Rating	10A
Number of Levels	1 (Mate), 2 (Input)
Current	10A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	16-24 AWG
Voltage - IEC	400V
Positions Per Level	3 (Mate), 6 (Input)
Number of Ways	3
Safety Approval	UL
Plug Wire Entry	45°
Wire Gauge or Range - mm²	0.2-1.5mm2
Current - IEC	8A
Stripping Length	10mm
Fastening Method	SPRING LOADED
Height	16mm
Length	11.9mm
Width	20mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1725120 Product Details

1725120 Overview

Mounting type Free Hanging (In-Line) is selected for the device.It is necessary to use a Bulk case for packaging the product.This is from the COMBICON PTDA Series.Free Hanging represents the mounting point for the part.There should be no voltage above 0 on the supply line for this chip.There are a lot of similarities between this part and other Plug for Unshrouded Header products.
