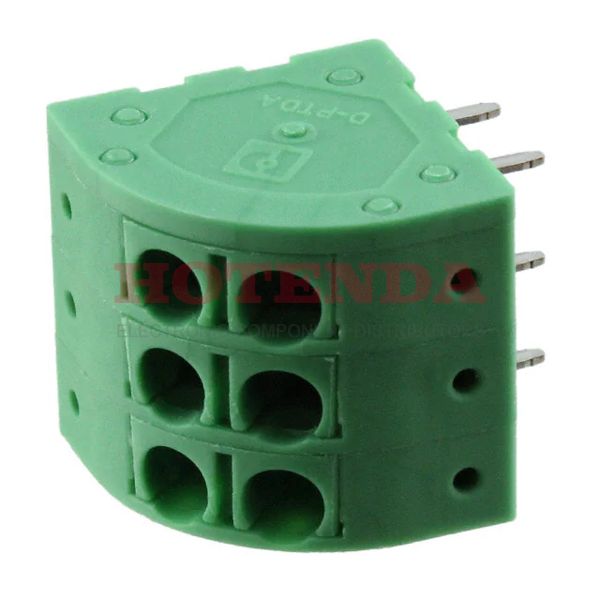

Name: 1725315
Brand: Phoenix Contact
SKU: 1725315
Price: 1.24000 USD
Availability: InStock

new-10%

1725315

Manufacturer part number:1725315

Manufacturer:Phoenix Contact

Description:0.197 5.00mm Green Bulk Polyamide (PA), Nylon Through Hole 45° (135°) Angle with Board Screwless - Leg Spring, Push-In Spring 1 Levels 14-24 AWG COMBICON PTDA

Case Package:SOT-23

Datasheet:1725315 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Copper
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	5.651988g
Packaging	Bulk
Series	COMBICON PTDA
Published	2010
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Number of Positions	3
Color	Green
Number of Rows	2
Voltage - Rated	300V
Additional Feature	PA, 94V-0
Pitch	0.197 5.00mm
Depth	16mm
Current Rating	24A
Wire Gauge	14-24 AWG
Max Supply Voltage	300V
Max Current Rating	10A
Number of Levels	1
Current	15A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Positions Per Level	3
Number of Ways	3
Safety Approval	UL
Mating Orientation	45° (135°) Angle with Board
Wire Termination	Screwless - Leg Spring, Push-In Spring
Fastening Method	SPRING LOADED
Height	16.15mm
Length	16.4mm
Width	19.5mm
RoHS Status	RoHS Compliant

1725315 Product Details

1725315 Overview

Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the COMBICON PTDA Series of products.Additionally, there are other features, such as PA, 94V-0.Through Hole mounts the part.This chip should not be supplied with a voltage greater than 300V.
