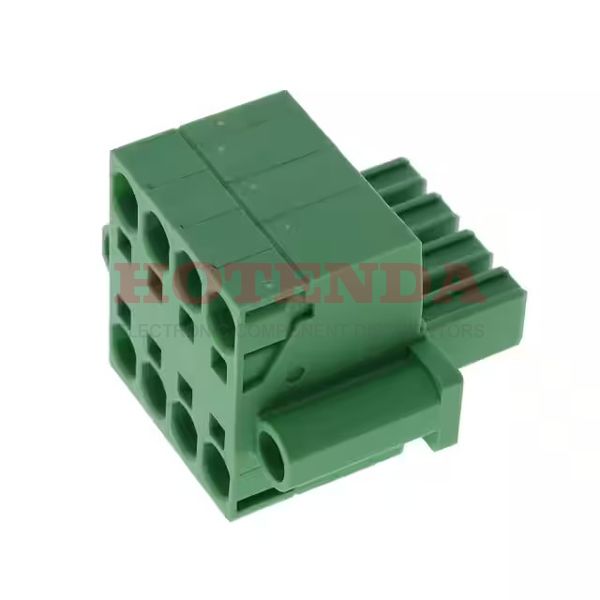

Name: 1728222
Brand: Phoenix Contact
SKU: 1728222
Price: 18.67000 USD
Availability: InStock

new

1728222

Manufacturer part number:1728222

Manufacturer:Phoenix Contact

Description:1728222 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1728222 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Weight	907.18474g
Packaging	Bulk
Published	2011
Series	COMBICON TSPC
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Type	Plug, Female Sockets
Number of Positions	4
Color	Green
Number of Rows	2
Gender	Female
Voltage - Rated	1kV
Pitch	0.300 7.62mm
Insulation Height	1.380 35.05mm
Current Rating	41A
Termination Style	Screwless - Push-In Spring
Voltage	600V
Number of Levels	1 (Mate), 2 (Input)
Current	31A
Wire Gauge (Max)	8 AWG
Wire Gauge (Min)	24 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	8-24 AWG
Voltage - IEC	1kV
Positions Per Level	4 (Mate), 8 (Input)
Number of Ways	4
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-10mm2
Wire Strip Length	15mm
Current - IEC	41A
Wire Cross Section	10 mm2
Fastening Method	SPRING LOADED
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1728222 Product Details

1728222 Overview

Free Hanging (In-Line) is the mounting type.We pack the product in a Bulk case.The product belongs to the COMBICON TSPC Series.A number of aspects of its Mating Flange feature make it more powerful.Free Hanging mounts the part.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
