Name: 1729089
Brand: Phoenix Contact
SKU: 1729089
Price: 5.27000 USD
Availability: InStock

new-10%

1729089

Manufacturer part number:1729089

Manufacturer:Phoenix Contact

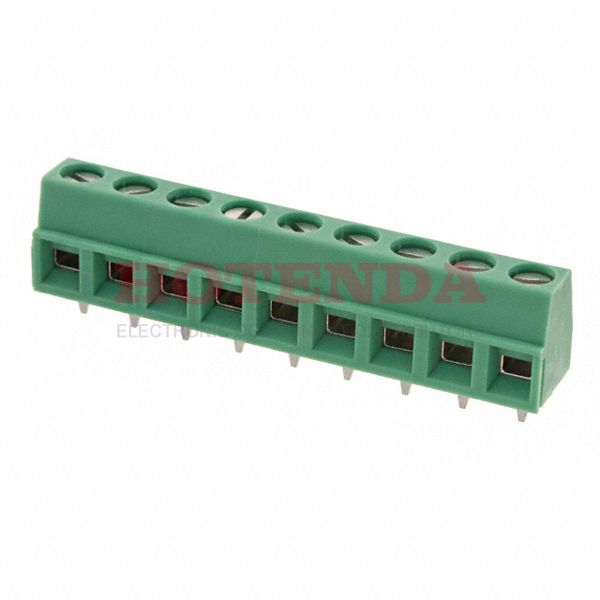

Description:0.197 5.00mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 14-30 AWG COMBICON MKDSN

Case Package:SOT-23

Datasheet:1729089 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	8.545992g
Packaging	Bulk
Series	COMBICON MKDSN
Published	2008
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Connector Type	Screw
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	400V
Pitch	0.197 5.00mm
Orientation	Straight
Depth	8.1mm
Current Rating	13.5A
Approval Agency	CB, CSA, UL, cULus
Number of Contacts	9
Wire Gauge	14-30 AWG
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	13.5A
Number of Levels	1
Current	10A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	9
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Stripping Length	6mm
Height	13.5mm
Length	8.1mm
Width	45mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1729089 Product Details

1729089 Overview

The product is packaged in Screw.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the COMBICON MKDSN Series.There are a number of advantages to its Interlocking (Side) feature.Part Through Hole is mounted to the part.It is recommended that this chip's supply voltage does not exceed 250V.
