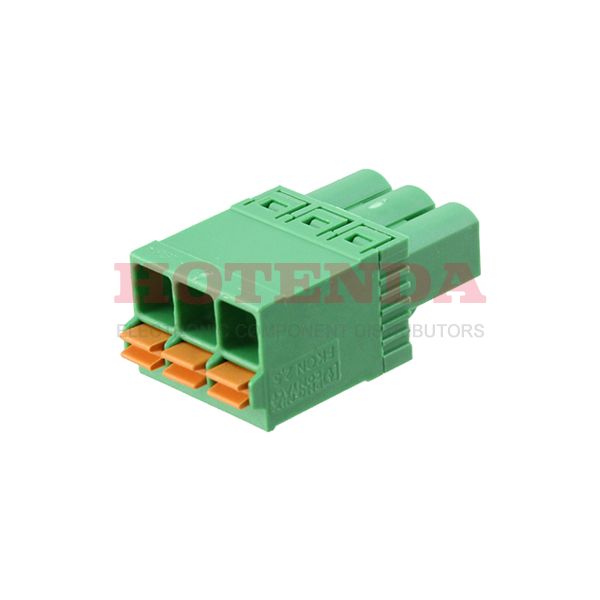

Name: 1732755
Brand: Phoenix Contact
SKU: 1732755
Price: 4.44000 USD
Availability: InStock

new-10%

1732755

Manufacturer part number:1732755

Manufacturer:Phoenix Contact

Description:1732755 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1732755 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	PBT, Tin
Housing Material	Polybutylene Terephthalate (PBT)
Weight	1.814369kg
Packaging	Bulk
Published	2013
Series	COMBICON FKCN
Feature	Retention Latches (Non-Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Color	Green
Gender	Female
Voltage - Rated	320V
Pitch	0.197 5.00mm
Insulation Height	0.429 10.90mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screwless - Push-In Spring
Voltage	320V
Number of Levels	1
Current	12A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	24 AWG
Wire Gauge or Range - AWG	16-24 AWG
Voltage - IEC	630V
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	10mm
Number of Positions Per Level	3
Height	15mm
Length	10.9mm
Width	26.2mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1732755 Product Details

1732755 Overview

The packaging contains Socket.It's mounted Free Hanging (In-Line).It's packaged in a Bulk case.This product is part of the COMBICON FKCN Series.Several benefits come from the Retention Latches (Non-Wire Side) feature.This part is mounted by Free Hanging. As with other Plug, Female Sockets products, this part also offers a wide range of benefits.
