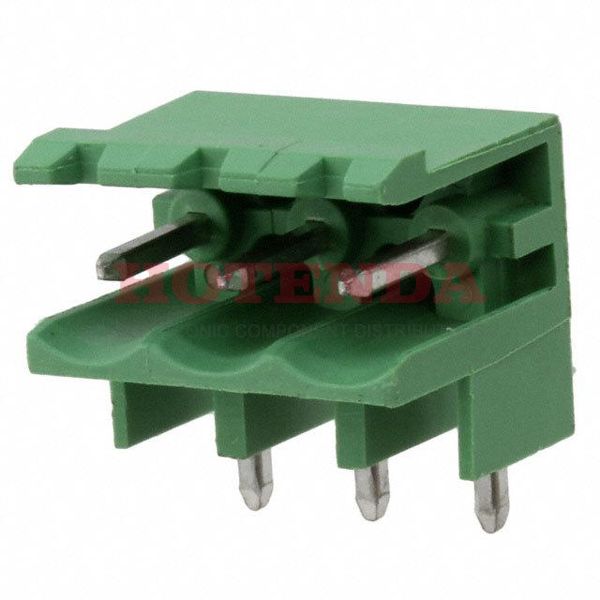

Name: 1736108
Brand: Phoenix Contact
SKU: 1736108
Price: 1.90000 USD
Availability: InStock

new-10%

1736108

Manufacturer part number:1736108

Manufacturer:Phoenix Contact

Description:1736108 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1736108 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Weight	4.535924kg
Packaging	Bulk
Published	2011
Series	COMBICON MSTBW
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (2 Side)
Number of Positions	3
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PBT, 94V-0
Pitch	0.197 5.00mm
Orientation	Right Angle
Depth	12mm
Insulation Height	0.490 12.44mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	12A
Number of Levels	1
Current	12A
Number of Decks	1
Current - UL	15A
Voltage - IEC	400V
Number of Ways	3
Safety Approval	UL
Header Orientation	90°, Right Angle
Height	15mm
Length	15mm
Width	15.95mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1736108 Product Details

1736108 Overview

A Plug package is included with it.Mounting type Through Hole is selected for the device.It has been determined that a Bulk case is necessary to package the product.This product is in the COMBICON MSTBW Series.Also, there's PBT, 94V-0, to name a few.Through Hole is used to mount the part.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (2 Side) products.
