Name: 1737725
Brand: Phoenix Contact
SKU: 1737725
Price: 8.22000 USD
Availability: InStock

new

1737725

Manufacturer part number:1737725

Manufacturer:Phoenix Contact

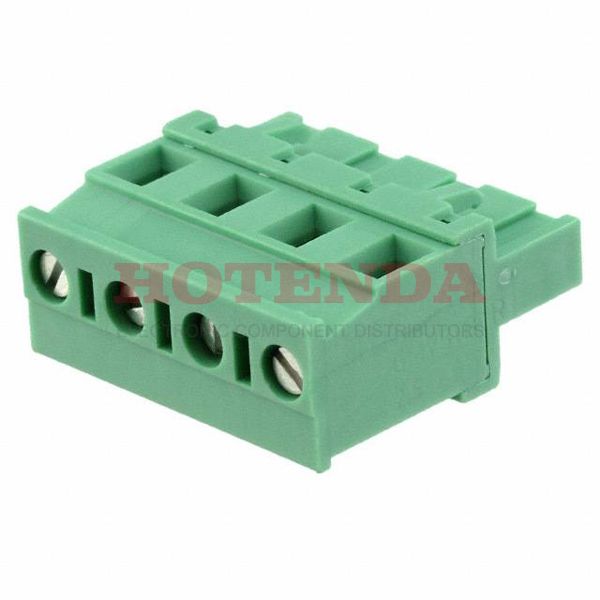

Description:Bulk 0.295 7.50mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON GMVSTBR Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1737725 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	1.59982kg
Packaging	Bulk
Series	COMBICON GMVSTBR
Published	2005
Feature	Retention Latches (Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	500V
Pitch	0.295 7.50mm
Orientation	Straight
Depth	26mm
Insulation Height	1.024 26.01mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	CB, CSA, UL, VDE
Voltage	300V
Number of Levels	1
Current	15A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Poles	4
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	1kV
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	4
Safety Approval	UL
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-2.5mm2
Current - IEC	12A
Screw Size	M3
Stripping Length	7mm
Wire Cross Section	2.5 mm2
Height	26mm
Length	28mm
Width	12.6mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-2

1737725 Product Details

1737725 Overview

A Screw, Socket package is included with it.Its mounting type is Free Hanging (In-Line).Packaging is performed using a Bulk case.It is part of the COMBICON GMVSTBR Series of products.A number of features make it more powerful because of its Retention Latches (Wire Side) feature.Free Hanging, Plug-In mounts the part.Several of the benefits of this part are also shared by other Plug, Female Sockets products.
