Phoenix Contact

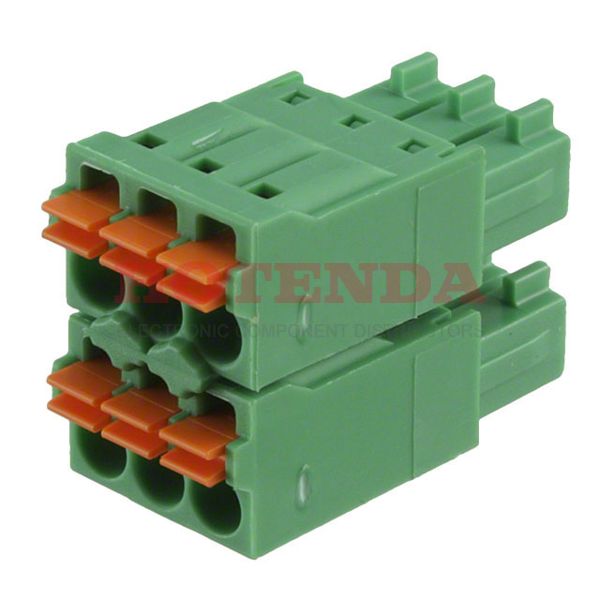

1738814 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1738814 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingTin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 3.799006g
PackagingBulk
Published 2011
Series COMBICON FMCD
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Number of Positions 6
Color Green
Number of Rows 2
Voltage - Rated 160V
Additional FeaturePA, UL 94V0
Pitch 0.138 3.50mm
Insulation Height 0.630 16.00mm
Current Rating8A
Termination Style Screwless - Push-In Spring
Voltage 150V
Number of Levels 2
Current 8A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 16 AWG
Number of Decks 1
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 320V
Positions Per Level 3
Number of Ways 3
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-1.5mm2
Wire Strip Length 10mm
Fastening Method SPRING LOADED
Height 16mm
Length 11.2mm
Width 22.9mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:784 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$9.895135$9.895135
10$9.335032$93.35032
100$8.806634$880.6634
500$8.308146$4154.073
1000$7.837873$7837.873

1738814 Product Details

1738814 Overview


It comes in Socket packaging.Free Hanging (In-Line) is the mounting type of the device.Packaged in a Bulk case.As a product of the COMBICON FMCD Series, it can be found in this category.There are also other features such as PA, UL 94V0, to name only a few.Mounted by Free Hanging.In addition to its benefits, this part also shares many with the other products in the Plug, Female Sockets series.

1738814 Features


COMBICON FMCD series

1738814 Applications


There are a lot of Phoenix Contact 1738814 Terminal Blocks applications.

  • Embedded systems
  • Military Technology
  • Control panels
  • Measuring & Control Technology
  • Energy efficient lighting (LED)
  • Medical technology
  • Data Technology
  • Electrical substations
  • Telecommunications
  • Industrial Automation
