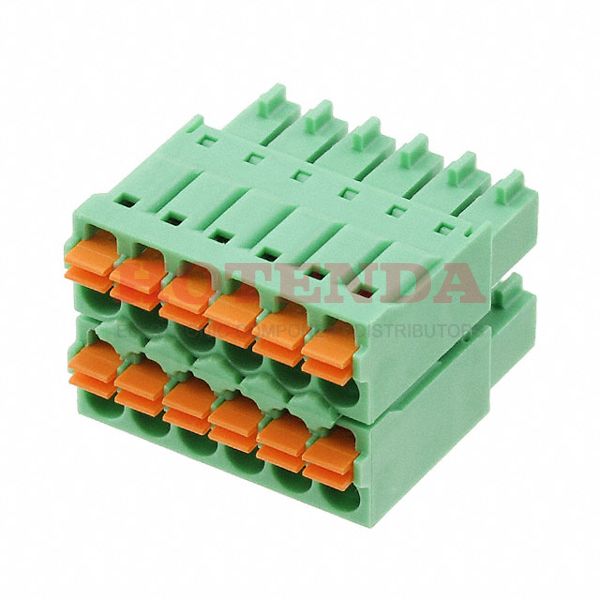

Name: 1738843
Brand: Phoenix Contact
SKU: 1738843
Price: 16.66000 USD
Availability: InStock

new

1738843

Manufacturer part number:1738843

Manufacturer:Phoenix Contact

Description:1738843 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1738843 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Weight	7.228987g
Packaging	Bulk
Published	2011
Series	COMBICON FMCD
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Number of Positions	12
Color	Green
Number of Rows	2
Gender	Female
Voltage - Rated	160V
Additional Feature	PA, UL 94V0
Pitch	0.138 3.50mm
Depth	16mm
Insulation Height	0.630 16.00mm
Current Rating	8A
Termination Style	Screwless - Push-In Spring
Voltage	150V
Number of Levels	2
Current	8A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	16-24 AWG
Voltage - IEC	320V
Number of Ways	6
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	10mm
Number of Positions Per Level	6
Fastening Method	SPRING LOADED
Height	21.7mm
Length	19mm
Width	22.9mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1738843 Product Details

1738843 Overview

The packaging is Socket.The device's mounting type is Free Hanging (In-Line).To package the product, we use a Bulk case.The product is part of the COMBICON FMCD Series.Further, there are features such as PA, UL 94V0, to name only a few.You've got Free Hanging mounted on the part.There are a lot of advantages this part has in common with other Plug, Female Sockets parts.
