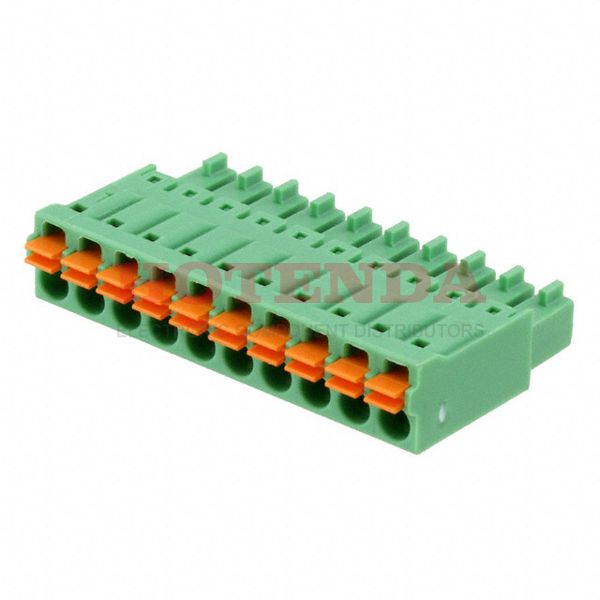

Name: 1748053
Brand: Phoenix Contact
SKU: 1748053
Price: 12.13000 USD
Availability: InStock

new

1748053

Manufacturer part number:1748053

Manufacturer:Phoenix Contact

Description:1748053 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1748053 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Weight	6.157998g
Packaging	Bulk
Published	2011
Series	COMBICON FMC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	160V
Additional Feature	PA, UL 94V-0
HTS Code	8536.69.40.40
Pitch	0.150 3.81mm
Orientation	Straight
Depth	7.8mm
Insulation Height	0.307 7.80mm
Reach Compliance Code	unknown
Current Rating	8A
Termination Style	Screwless - Push-In Spring
Number of Contacts	10
Voltage	150V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	16 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	16-24 AWG
Voltage - IEC	320V
Number of Ways	10
Safety Approval	CUL; GOST; UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	10mm
Fastening Method	SPRING LOADED
Width	38.54mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1748053 Product Details

1748053 Overview

Mounting type Free Hanging (In-Line) is selected for the device.It has been determined that a Bulk case is necessary to package the product.The product is a part of the COMBICON FMC Series.Among other features are PA, UL 94V-0, to name only a few.Mounting of the part is based on Cable, Free Hanging.As with other Plug, Female Sockets products, this part has a lot of benefits.
