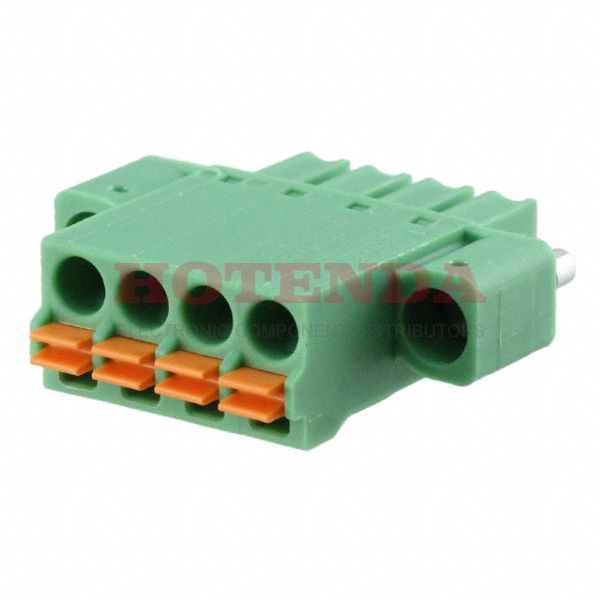

Name: 1748370
Brand: Phoenix Contact
SKU: 1748370
Price: 4.69000 USD
Availability: InStock

new-10%

1748370

Manufacturer part number:1748370

Manufacturer:Phoenix Contact

Description:1748370 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1748370 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Weight	3.350006g
Packaging	Bulk
Published	2011
Series	COMBICON FMC
Feature	Mating Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
Type	Plug, Female Sockets
Color	Green
Gender	Female
Voltage - Rated	160V
Pitch	0.150 3.81mm
Insulation Height	0.307 7.80mm
Current Rating	8A
Termination Style	Screwless - Push-In Spring
Voltage	150V
Number of Levels	1
Current	8A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	24 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	16-24 AWG
Voltage - IEC	320V
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	10mm
Number of Positions Per Level	4
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1748370 Product Details

1748370 Overview

This device has a Free Hanging (In-Line) mounting type.A Bulk case is used for packaging.The product is part of the COMBICON FMC Series.Several benefits come from the Mating Flange feature.By Free Hanging it's mounted.Many Plug, Female Sockets products share the same benefits as this part.
