Name: 1751536
Brand: Phoenix Contact
SKU: 1751536
Price: 33.41000 USD
Availability: InStock

new

1751536

Manufacturer part number:1751536

Manufacturer:Phoenix Contact

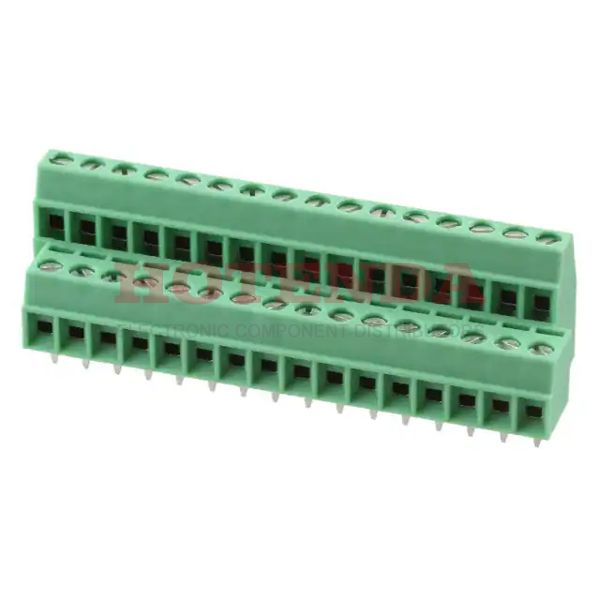

Description:0.138 3.50mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 2 Levels 16-30 AWG COMBICON MKKDS

Case Package:SOT-23

Datasheet:1751536 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Number of Pins	32
Housing Material	Polyamide (PA), Nylon
Weight	19.309994g
Packaging	Bulk
Series	COMBICON MKKDS
Published	2011
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Color	Green
Number of Rows	1
Voltage - Rated	200V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.138 3.50mm
Orientation	Straight
Reach Compliance Code	unknown
Current Rating	8A
Number of Contacts	32
Wire Gauge	16-30 AWG
Voltage	300V
Max Current Rating	10A
Number of Levels	2
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	16 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	16
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M2
Number of Positions Per Level	16
Height	16.2mm
Length	16.3mm
Width	58.25mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1751536 Product Details

1751536 Overview

It comes in Screw packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the COMBICON MKKDS Series of products.The device is equipped with 32 pins.In addition, there are other features such as PA, 94V-0, to mention only a few.The part is mounted by Through Hole.
