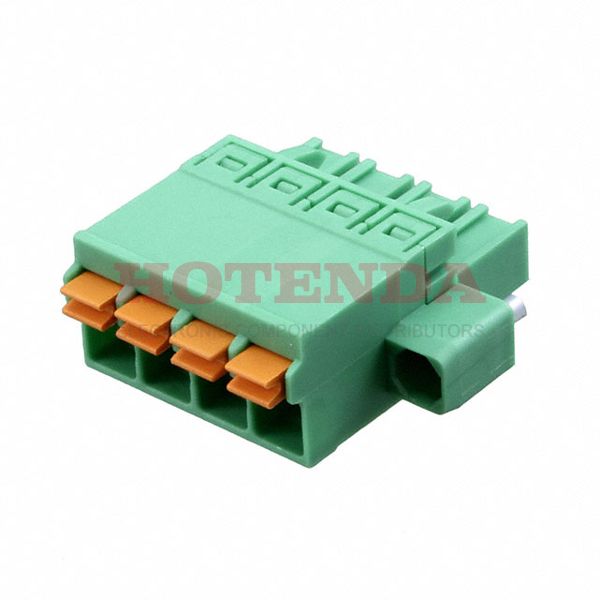

Name: 1754814
Brand: Phoenix Contact
SKU: 1754814
Price: 6.04000 USD
Availability: InStock

new-10%

1754814

Manufacturer part number:1754814

Manufacturer:Phoenix Contact

Description:1754814 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1754814 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2011
Series	COMBICON FKCN
Feature	Mating Flange, Retention Latches (Non-Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
Type	Plug, Female Sockets
Color	Green
Gender	Female
Voltage - Rated	320V
Pitch	0.200 5.08mm
Insulation Height	0.429 10.90mm
Current Rating	12A
Termination Style	Screwless - Leg Spring, Push-In Spring
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	14 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	14-24 AWG
Voltage - IEC	630V
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	10mm
Current - IEC	12A
Number of Positions Per Level	4
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1754814 Product Details

1754814 Overview

Free Hanging (In-Line) is the mounting type of the device.A Bulk case is used to package the product.Specifically, it is one of the products in the COMBICON FKCN Series.In many ways, Mating Flange, Retention Latches (Non-Wire Side) makes it more powerful.Free Hanging mounts the part.There are a lot of similarities between this part and other Plug, Female Sockets products.
