Name: 1755590
Brand: Phoenix Contact
SKU: 1755590
Price: 4.00000 USD
Availability: InStock

new-10%

1755590

Manufacturer part number:1755590

Manufacturer:Phoenix Contact

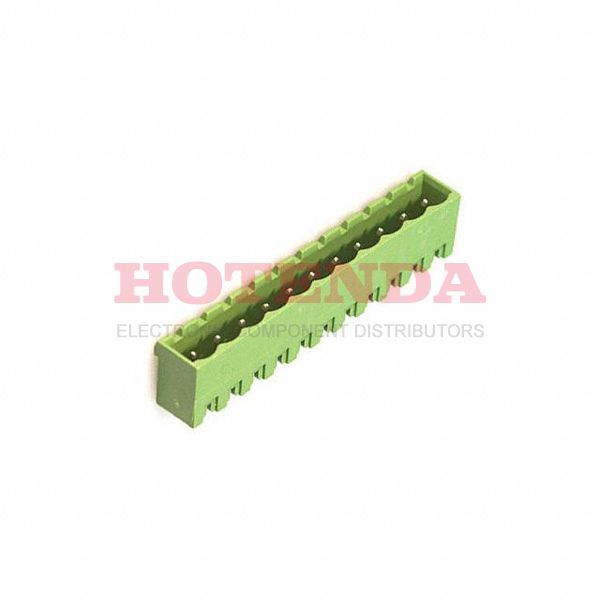

Description:Bulk 0.197 5.00mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) COMBICON MSTBVA Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1755590 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	1.50003kg
Packaging	Bulk
Series	COMBICON MSTBVA
Published	2012
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PBT, 94V-0
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Orientation	Straight
Depth	8.6mm
Insulation Height	0.472 12.00mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Solder
Approval Agency	CSA, UL
Voltage	300V
Contact Tail Length	0.154 3.90mm
Max Current Rating	12A
Number of Levels	1
Current	12A
Number of Poles	11
Number of Decks	1
Voltage - IEC	400V
Number of Ways	11
Safety Approval	UL
Header Orientation	Vertical
Height	15.9mm
Length	57mm
Width	57mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1755590 Product Details

1755590 Overview

This product is packaged in a Plug box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the COMBICON MSTBVA Series.Furthermore, there are other features such as PBT, 94V-0, to name a few.By Through Hole, the part is mounted.It is a part that shares many benefits with other products from the Header, Male Pins, Shrouded (4 Side) line.
