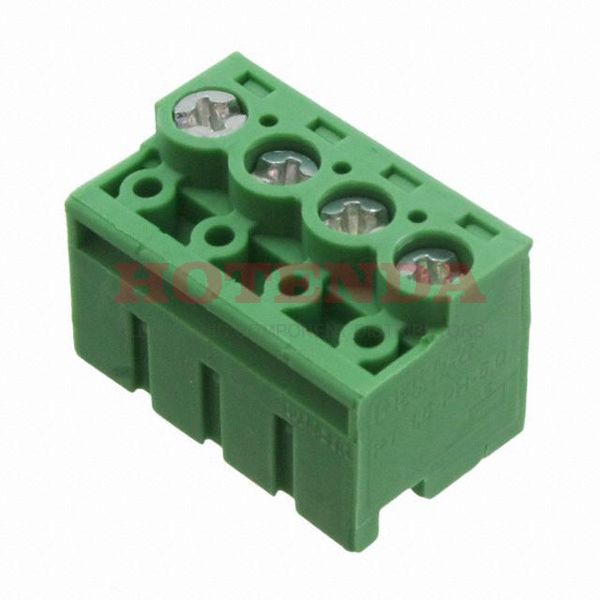

Name: 1755606
Brand: Phoenix Contact
SKU: 1755606
Price: 1.30000 USD
Availability: InStock

new-10%

1755606

Manufacturer part number:1755606

Manufacturer:Phoenix Contact

Description:1755606 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1755606 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2010
Series	COMBICON PT
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug for Unshrouded Header
Color	Green
Gender	Female
Voltage - Rated	250V
Pitch	0.197 5.00mm
Orientation	Right Angle
Insulation Height	0.518 13.15mm
Reach Compliance Code	unknown
Current Rating	10A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	4
Voltage	300V
Max Current Rating	10A
Number of Levels	1
Current	10A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	14 AWG
Wire Gauge or Range - AWG	14-28 AWG
Voltage - IEC	630V
Torque - Screw	0.35-0.4 Nm (3.1-3.5 Lb-In)
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	6mm
Height	13.15mm
Length	12.2mm
Width	20mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1755606 Product Details

1755606 Overview

The product comes in a package of Screw, Socket.Free Hanging (In-Line) indicates that the device is mounted.A Bulk case is used to package the product.Specifically, it is one of the products in the COMBICON PT Series.Cable, Free Hanging represents the mounting point for the part.There are a lot of similarities between this part and other Plug for Unshrouded Header products.
