1755613

1755613

1755613

Phoenix Contact

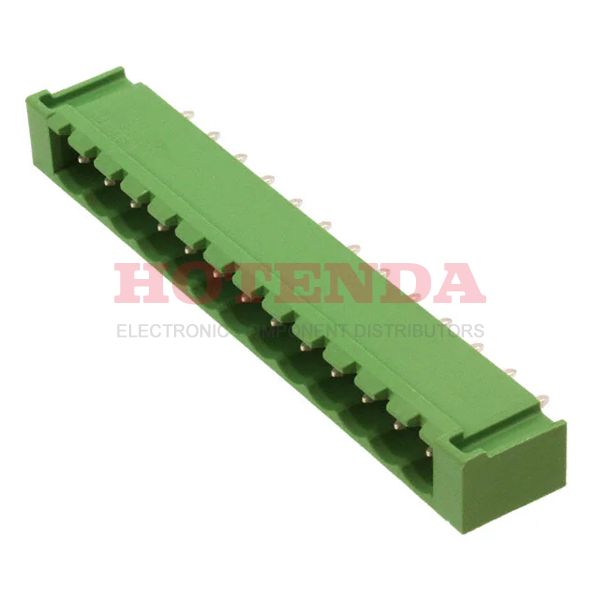

1755613 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1755613 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingTin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 1.50003kg
PackagingBulk
Published 2011
Series COMBICON MSTBVA
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional FeaturePBT, 94V-0
HTS Code8536.69.40.40
Pitch 0.197 5.00mm
Orientation Straight
Depth 8.6mm
Insulation Height 0.472 12.00mm
Reach Compliance Code unknown
Current Rating12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.154 3.90mm
Max Current Rating 12A
Number of Levels 1
Current 12A
Number of Decks 1
Voltage - IEC 400V
Number of Ways 13
Safety Approval UL
Header Orientation Vertical
Number of Positions Per Level 13
Height 15.9mm
Length 67mm
Width 67mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:1174 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$4.82000$4.82
10$4.68500$46.85
50$4.37860$218.93
100$4.02820$402.82
250$3.72172$930.43
500$3.54660$1773.3

1755613 Product Details

1755613 Overview


This product is packaged in a Plug carton.Mounting type Through Hole is assigned to the device.Packaged in a Bulk case.As a product of the COMBICON MSTBVA Series, it can be found in this category.As well as PBT, 94V-0, to name a few.There's a Through Hole on the part.

1755613 Features


COMBICON MSTBVA series

1755613 Applications


There are a lot of Phoenix Contact 1755613 Terminal Blocks applications.

  • All Electrical Machinery
  • Automotive Electronics
  • Medical technology
  • Variable speed/frequency drivers
  • LED municipal outdoor and street lighting
  • Telecommunications
  • Military Technology
  • Control panels
  • Data Technology
  • Blowers
