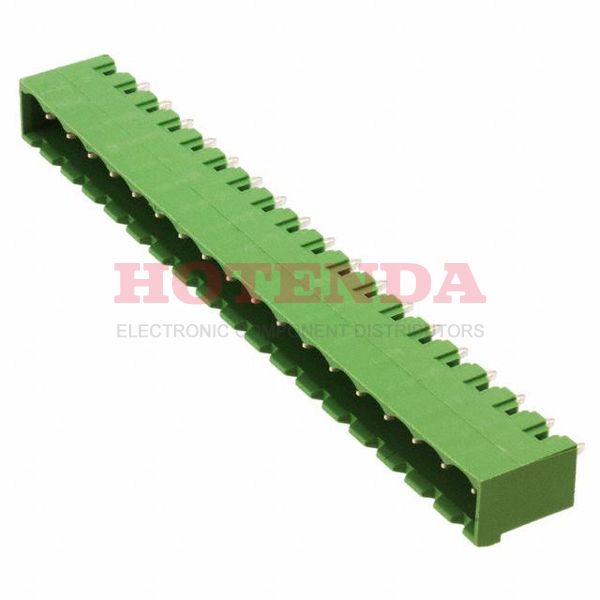

1755668

1755668

1755668

Phoenix Contact

1755668 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1755668 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingTin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 907.18474g
PackagingBulk
Published 2011
Series COMBICON MSTBVA
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional FeaturePBT, 94V-0
HTS Code8536.69.40.40
Pitch 0.197 5.00mm
Orientation Straight
Depth 8.6mm
Insulation Height 0.472 12.00mm
Reach Compliance Code unknown
Current Rating12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.154 3.90mm
Max Current Rating 12A
Number of Levels 1
Current 12A
Number of Decks 1
Voltage - IEC 400V
Number of Ways 18
Safety Approval UL
Header Orientation Vertical
Number of Positions Per Level 18
Height 15.9mm
Length 92mm
Width 92mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:906 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$7.390850$7.39085
10$6.972500$69.725
100$6.577830$657.783
500$6.205501$3102.7505
1000$5.854245$5854.245

1755668 Product Details

1755668 Overview


Currently, it is packaged in Plug.Through Hole indicates that the device is mounted.We use a Bulk case to package the product.As a product of the COMBICON MSTBVA Series, it can be found in this category.To name a few, there is also PBT, 94V-0.You've got Through Hole mounted on the part.It is a part that shares many benefits with other products from the Header, Male Pins, Shrouded (4 Side) line.

1755668 Features


COMBICON MSTBVA series

1755668 Applications


There are a lot of Phoenix Contact 1755668 Terminal Blocks applications.

  • Electrical substations
  • LED municipal outdoor and street lighting
  • Data Technology
  • All Electrical Machinery
  • Instrumentation
  • Industrial Automation
  • Transportation
  • Telecommunications
  • Military Technology
  • Medical technology
