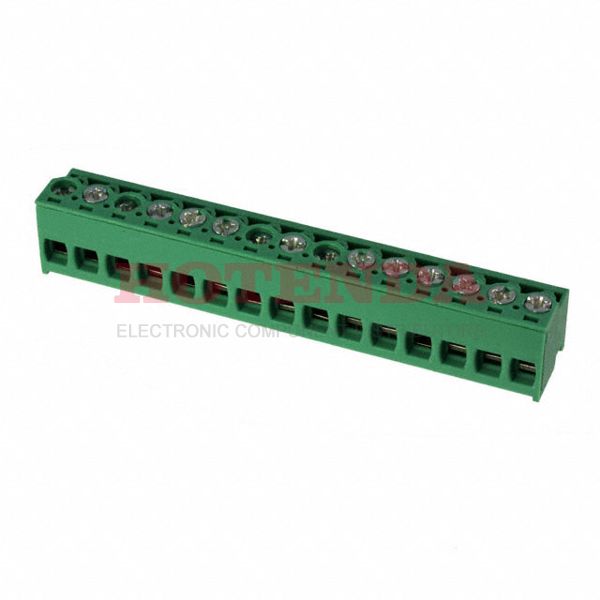

Name: 1755716
Brand: Phoenix Contact
SKU: 1755716
Price: 4.04000 USD
Availability: InStock

new-10%

1755716

Manufacturer part number:1755716

Manufacturer:Phoenix Contact

Description:1755716 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1755716 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Contact Material	Brass
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2010
Series	COMBICON PT
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug for Unshrouded Header
Color	Green
Gender	Female
Voltage - Rated	250V
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Orientation	Right Angle
Insulation Height	0.518 13.15mm
Reach Compliance Code	unknown
Current Rating	10A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	15
Housing Color	Grey
Voltage	300V
ELV	Compliant
Max Current Rating	10A
Number of Levels	1
Current	10A
Wire Gauge (Max)	14 AWG
Wire Gauge (Min)	26 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	14-28 AWG
Voltage - IEC	630V
Torque - Screw	0.35-0.4 Nm (3.1-3.5 Lb-In)
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	6mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 HB

1755716 Product Details

1755716 Overview

You'll get Screw packages.This device has a mounting type of Free Hanging (In-Line).It has been determined that a Bulk case is necessary to package the product.The product is part of the COMBICON PT Series.Mounted by Cable, Free Hanging.
