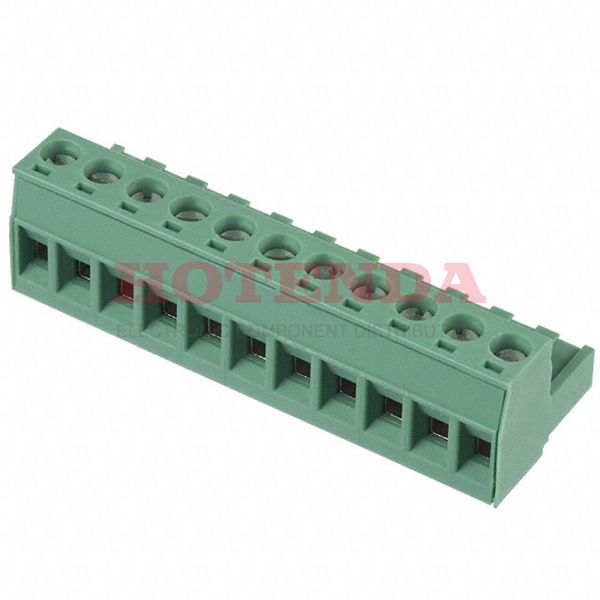

Name: 1757103
Brand: Phoenix Contact
SKU: 1757103
Price: 11.54000 USD
Availability: InStock

new

1757103

Manufacturer part number:1757103

Manufacturer:Phoenix Contact

Description:1757103 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1757103 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	127.999996g
Packaging	Bulk
Published	2000
Series	COMBICON MSTB
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	UL 94V-0, PA, SAFETY APPROVAL: VDE
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Right Angle
Insulation Height	0.591 15.00mm
Reach Compliance Code	not_compliant
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	CB, CSA, UL, VDE, cULus
Voltage	300V
Max Current Rating	12A
Number of Levels	1
Current	15A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	11
Safety Approval	CB; CCA; CSA; CUL; EAC; UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Number of Positions Per Level	11
Screw Size	M3
Stripping Length	7mm
Wire Cross Section	2.5 mm2
Height	18.3mm
Length	15mm
Width	55.88mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1757103 Product Details

1757103 Overview

This product is packaged in a Screw, Socket box.Mounting type Free Hanging (In-Line) is selected for the device.Packaged in a Bulk case.COMBICON MSTB Series product.Additionally, there are other features, such as UL 94V-0, PA, SAFETY APPROVAL: VDE.In many ways, it is more powerful due to its Retention Latches (Non-Wire Side) feature.This part is mounted by Cable, Free Hanging. There are many benefits that this part shares with other Plug, Female Sockets products as well.
