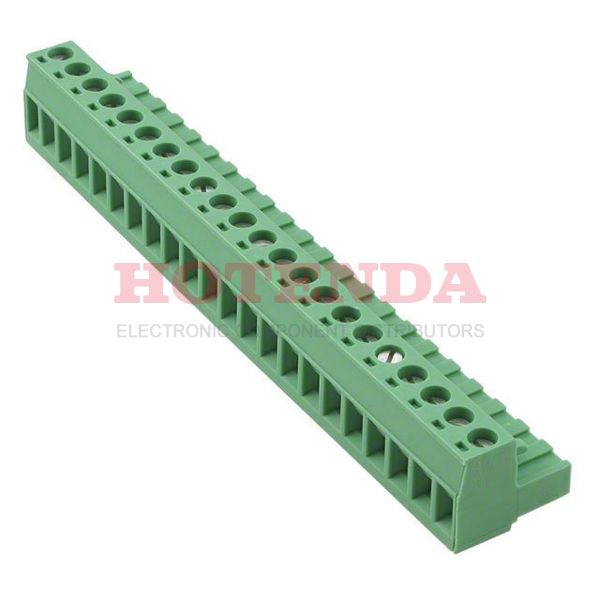

Name: 1757213
Brand: Phoenix Contact
SKU: 1757213
Price: 23.09000 USD
Availability: InStock

new

1757213

Manufacturer part number:1757213

Manufacturer:Phoenix Contact

Description:1757213 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1757213 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	127.999996g
Packaging	Bulk
Published	2011
Series	COMBICON MSTB
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	18.2mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	22
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	12A
Number of Levels	1
Current	12A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	22
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	18.3mm
Length	111.76mm
Width	111.76mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1757213 Product Details

1757213 Overview

This product is packaged in a Screw, Socket cartonThere is a Free Hanging (In-Line) mounting type for the device.A Bulk case is used to package the product.The product is part of the COMBICON MSTB Series.There are also other features like PA, 94V-0, to name a few.This feature makes it more powerful in a number of ways due to its Retention Latches (Non-Wire Side) feature.There is a mounting hole at Cable, Free Hanging.This chip should not be supplied with voltage greater than 250V volts.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
