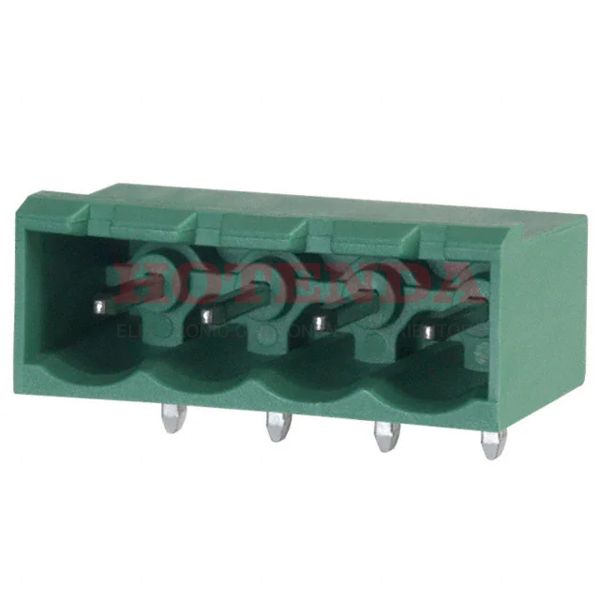

Name: 1757268
Brand: Phoenix Contact
SKU: 1757268
Price: 1.55000 USD
Availability: InStock

new-10%

1757268

Manufacturer part number:1757268

Manufacturer:Phoenix Contact

Description:1757268 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1757268 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Tin
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	152.999995g
Packaging	Bulk
Published	2001
Series	COMBICON MSTBA
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	4
Max Operating Temperature	70°C
Min Operating Temperature	-40°C
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	250V
Voltage - Rated DC	250V
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	12mm
Insulation Height	0.339 8.61mm
Current Rating	12A
Termination Style	Solder
Voltage - Rated AC	250V
Approval Agency	CSA, UL
Lead Pitch	5.08mm
Number of Contacts	4
Housing Color	Green
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	12A
Number of Levels	1
Current	15A
Number of Poles	4
Contact Mating Finish	Tin
Voltage - UL	300V
Current - UL	15A
Voltage - IEC	400V
Positions Per Level	4
Header Orientation	90°, Right Angle
Current - IEC	12A
Number of Positions Per Level	4
Height	12.1mm
Length	22.32mm
Width	22.24mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1757268 Product Details

1757268 Overview

Packaging is Plug.A Through Hole mounting type is specified for the device.A Bulk case is used to package the product.This is from the COMBICON MSTBA Series.Use it when the temperature is below 70°C.It has to be at least -40°C degrees to work.Through Hole represents the mounting point for the part.Compared to other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits to offer.
