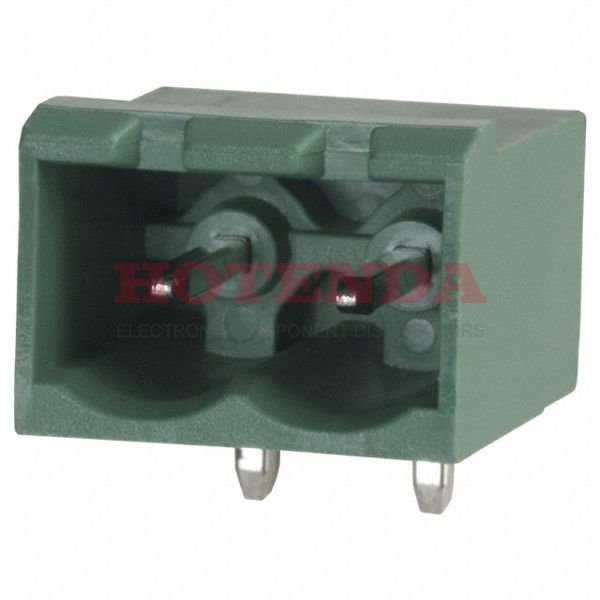

Name: 1757475
Brand: Phoenix Contact
SKU: 1757475
Price: 0.80000 USD
Availability: InStock

new-10%

1757475

Manufacturer part number:1757475

Manufacturer:Phoenix Contact

Description:1757475 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1757475 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Tin
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	1.365993g
Packaging	Bulk
Published	2010
Series	COMBICON MSTBA
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	2
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	250V
Voltage - Rated DC	320V
Pitch	0.197 5.00mm
Orientation	Right Angle
Depth	12mm
Insulation Height	0.339 8.61mm
Current Rating	12A
Termination Style	Solder
Approval Agency	CSA, UL
Number of Contacts	2
Housing Color	Green
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	12A
Number of Levels	1
Current	15A
Number of Poles	2
Contact Mating Finish	Tin
Voltage - UL	300V
Current - UL	15A
Voltage - IEC	400V
Positions Per Level	2
Header Orientation	90°, Right Angle
Current - IEC	12A
Number of Positions Per Level	2
Height	12mm
Length	12mm
Width	12.1mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1757475 Product Details

1757475 Overview

You'll get Plug packages.Through Hole is the mount type.An Bulk case is utilized for packaging the product.It's from the COMBICON MSTBA Series.Through Hole is used to mount the part.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (4 Side) products.
