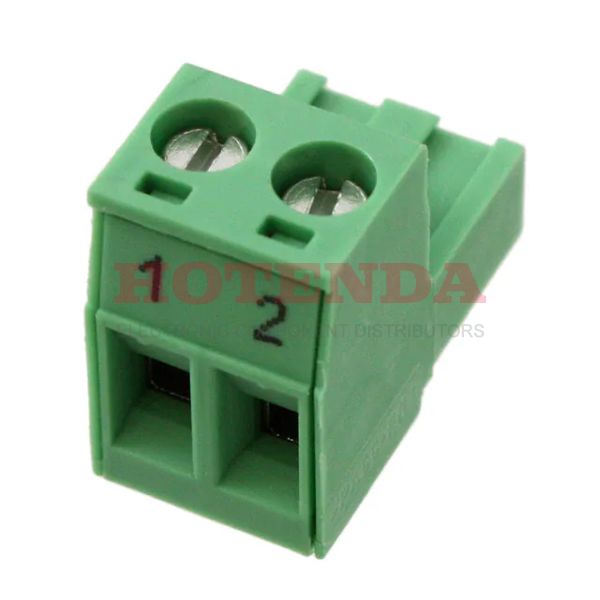

Name: 1758364
Brand: Phoenix Contact
SKU: 1758364
Price: 2.31000 USD
Availability: InStock

new-10%

1758364

Manufacturer part number:1758364

Manufacturer:Phoenix Contact

Description:1758364 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1758364 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Plating	Tin
Mount	Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Weight	3.780012g
Packaging	Bulk
Published	2010
Series	COMBICON MSTB
Feature	Positions Stamped, Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Gender	Female
Voltage - Rated	250V
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Max Current Rating	12A
Number of Levels	1
Current	15A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Poles	2
Wire Gauge or Range - AWG	12-30 AWG
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Safety Approval	UL; VDE; CSA
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Screw Size	M3
Stripping Length	7mm
Height	15mm
Length	10.16mm
Width	18.3mm
RoHS Status	RoHS Compliant

1758364 Product Details

1758364 Overview

A Screw, Socket packaging is included.Free Hanging (In-Line) is the mounting type of the device.We use a Bulk case to package the product.A product of the COMBICON MSTB Series, it belongs to the range of products of that series.In many ways, its Positions Stamped, Retention Latches (Non-Wire Side) feature makes it more powerful.There is a Free Hanging, Plug-In mount on the part.In addition to its benefits, this part also shares many with the other products in the Plug, Female Sockets series.
