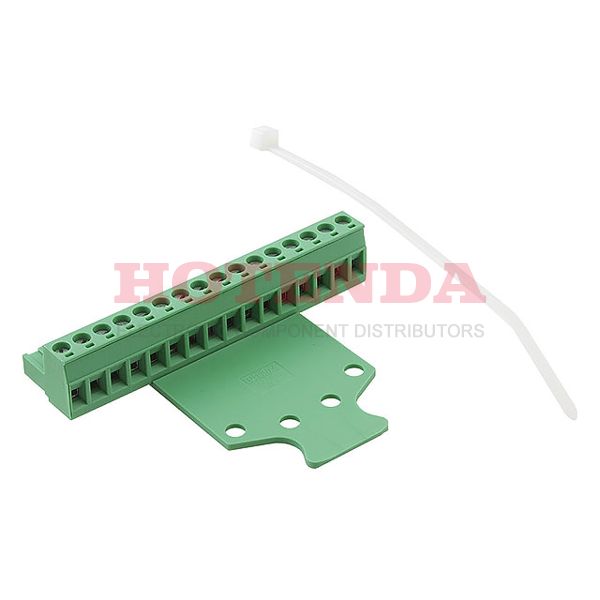

Name: 1764248
Brand: Phoenix Contact
SKU: 1764248
Price: 26.82000 USD
Availability: InStock

new

1764248

Manufacturer part number:1764248

Manufacturer:Phoenix Contact

Description:1764248 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1764248 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	128.999997g
Packaging	Bulk
Published	2011
Series	COMBICON MSTB
Feature	Retention Latches (Non-Wire Side), Strain Relief
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Number of Positions	16
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Right Angle
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	16
Voltage	300V
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	16
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	61.8mm
Length	39.5mm
Width	81.28mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1764248 Product Details

1764248 Overview

This product is packaged in a Screw, Socket carton.A Free Hanging (In-Line) mounting type is specified for the device.Bulk cases are used to package the product.There is a product in the COMBICON MSTB Series.Furthermore, there are other features such as PA, 94V-0, to name a few.There are a number of advantages to its Retention Latches (Non-Wire Side), Strain Relief feature.Cable, Free Hanging mounts the part.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.
