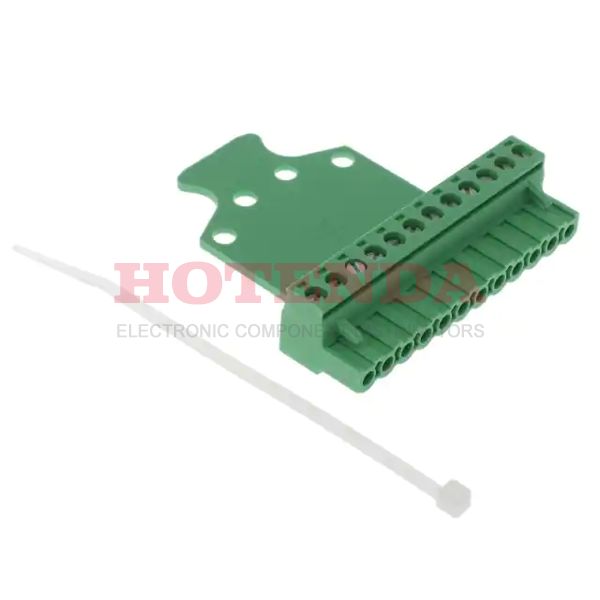

Name: 1764280
Brand: Phoenix Contact
SKU: 1764280
Price: 20.14000 USD
Availability: InStock

new

1764280

Manufacturer part number:1764280

Manufacturer:Phoenix Contact

Description:1764280 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1764280 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	128.999997g
Packaging	Bulk
Published	2011
Series	COMBICON MSTB
Feature	Retention Latches (Non-Wire Side), Strain Relief
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Number of Positions	12
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	61.8mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	12
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	60.96mm
Length	60.96mm
Width	61.8mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1764280 Product Details

1764280 Overview

A Screw, Socket package is included with it.The device's mounting type is Free Hanging (In-Line).To package the product, a Bulk case is used.Specifically, it is one of the products in the COMBICON MSTB Series.As well as PA, 94V-0, to name a few.This feature renders it more powerful in a number of ways because of its Retention Latches (Non-Wire Side), Strain Relief feature.It's mounted by Free Hanging.There should be no voltage over 250V on the supply line of this chip.There are a lot of similarities between this part and other Plug, Female Sockets products.
