Name: 1765250
Brand: Phoenix Contact
SKU: 1765250
Price: 11.01000 USD
Availability: InStock

new

1765250

Manufacturer part number:1765250

Manufacturer:Phoenix Contact

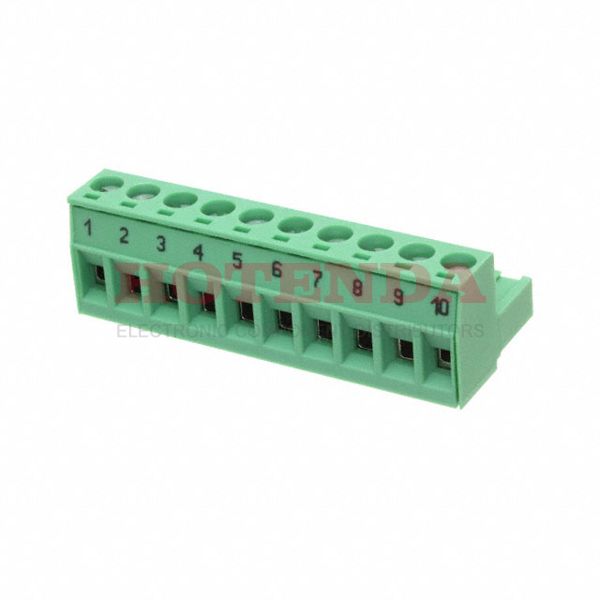

Description:Bulk 0.197 5.00mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON MSTB Polyamide (PA), Nylon Tin

Case Package:SOT-23

Datasheet:1765250 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mount	Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	600.102706g
Packaging	Bulk
Series	COMBICON MSTB
Published	2010
Feature	Positions Stamped, Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Color	Green
Gender	Female
Voltage - Rated	250V
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Insulation Height	0.591 15.00mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	15A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Poles	10
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	10
Safety Approval	UL; VDE; CSA
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Screw Size	M3
Stripping Length	7mm
Width	45mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1765250 Product Details

1765250 Overview

Currently, it is packaged in Screw.The mounting type of the device is Free Hanging (In-Line).A Bulk case is used to package the product.A product of the COMBICON MSTB Series, it belongs to the range of products of that series.A number of features make the Positions Stamped, Retention Latches (Non-Wire Side) feature more powerful.Free Hanging, Plug-In represents the mounting point for the part.As with other Plug, Female Sockets products, this part also offers a wide range of benefits.
