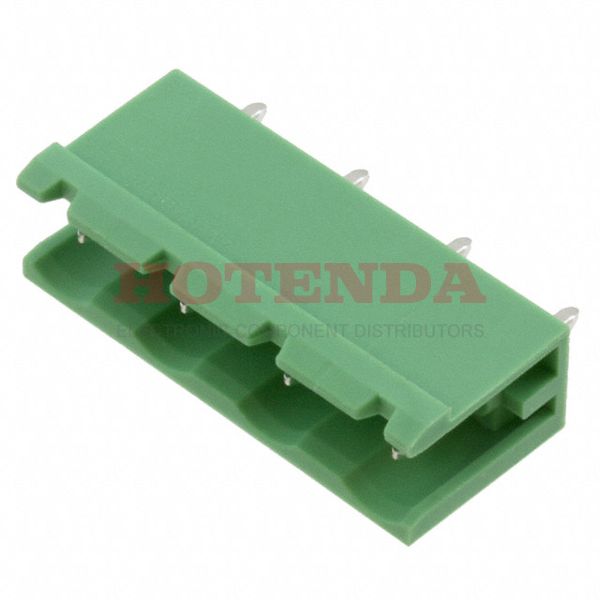

Name: 1766589
Brand: Phoenix Contact
SKU: 1766589
Price: 2.63000 USD
Availability: InStock

new-10%

1766589

Manufacturer part number:1766589

Manufacturer:Phoenix Contact

Description:1766589 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1766589 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	175.999991g
Packaging	Bulk
Published	2011
Series	COMBICON GMSTBV
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (2 Side)
Number of Positions	4
Color	Green
Number of Rows	1
Voltage - Rated	400V
Pitch	0.300 7.62mm
Insulation Height	0.472 12.00mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.154 3.90mm
Number of Levels	1
Current	10A
Voltage - UL	300V
Number of Decks	1
Current - UL	15A
Voltage - IEC	630V
Number of Ways	4
Safety Approval	UL
Header Orientation	Vertical
Height	15.9mm
Length	8.6mm
Width	28.68mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1766589 Product Details

1766589 Overview

Packaging is Plug.There is a Through Hole mounting type for the device.We pack the product in a Bulk case.This product is in the COMBICON GMSTBV Series.It is mounted by Through Hole.Several of the benefits of this part are also shared by other Header, Male Pins, Shrouded (2 Side) products.
