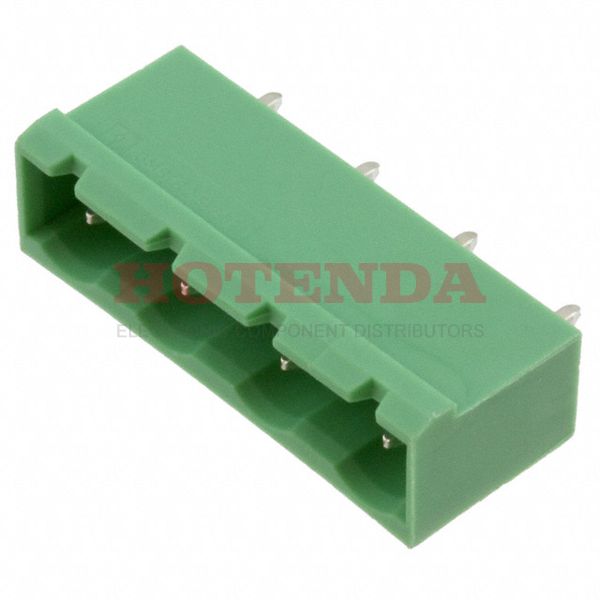

Name: 1766796
Brand: Phoenix Contact
SKU: 1766796
Price: 2.87000 USD
Availability: InStock

new-10%

1766796

Manufacturer part number:1766796

Manufacturer:Phoenix Contact

Description:1766796 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1766796 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	176.999992g
Packaging	Bulk
Published	2011
Series	COMBICON GMSTBVA
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Voltage - Rated	400V
Pitch	0.300 7.62mm
Orientation	Straight
Depth	8.6mm
Insulation Height	0.472 12.00mm
Current Rating	12A
Termination Style	Solder
Contact Gender	Male
Voltage	300V
Contact Tail Length	0.154 3.90mm
Max Current Rating	12A
Number of Levels	1
Current	10A
Number of Poles	4
Contact Mating Finish	Tin
Number of Decks	1
Current - UL	15A
Voltage - IEC	630V
Number of Ways	4
Safety Approval	CB; CCA; CSA; CUL; EAC; UL
Header Orientation	Vertical
Fastening Method	CONNECTOR
Height	15.9mm
Length	30.48mm
Width	30.48mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1766796 Product Details

1766796 Overview

This product is packaged in a Plug carton.Through Hole is the type of mounting for the device.Packaging is performed using a Bulk case.COMBICON GMSTBVA Series product.Through Hole is mounting the part.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (4 Side) products.
