Name: 1766932
Brand: Phoenix Contact
SKU: 1766932
Price: 14.17000 USD
Availability: InStock

new

1766932

Manufacturer part number:1766932

Manufacturer:Phoenix Contact

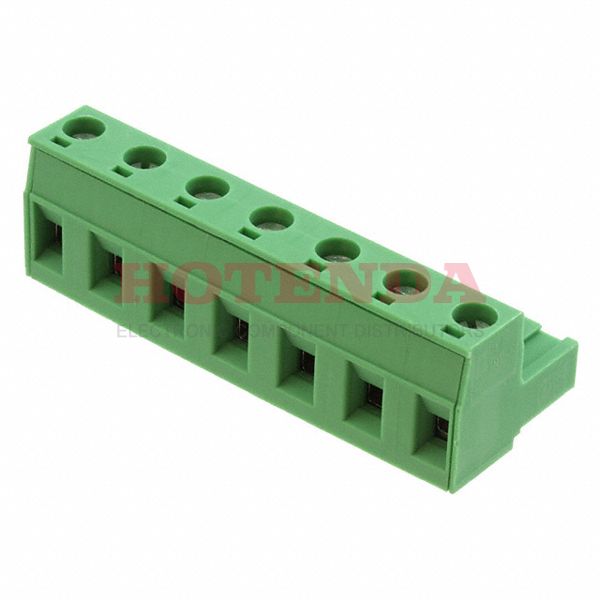

Description:Bulk 0.295 7.50mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON GMSTB Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1766932 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	600.102706g
Packaging	Bulk
Series	COMBICON GMSTB
Published	2008
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	400V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.295 7.50mm
Orientation	Straight
Depth	15mm
Insulation Height	0.591 15.00mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	CB, CSA, UL, VDE
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Poles	7
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	1kV
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	7
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Screw Size	M3
Stripping Length	7mm
Wire Cross Section	2.5 mm2
Height	18.2mm
Length	15mm
Width	50.5mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1766932 Product Details

1766932 Overview

Currently, it is packaged in Screw, Socket.The mounting type of the device is Free Hanging (In-Line).A Bulk case is used to package the product.A product of the COMBICON GMSTB Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as PA, 94V-0, to name a few.A number of features make the Retention Latches (Non-Wire Side) feature more powerful.Free Hanging, Plug-In represents the mounting point for the part.As with other Plug, Female Sockets products, this part also offers a wide range of benefits.
