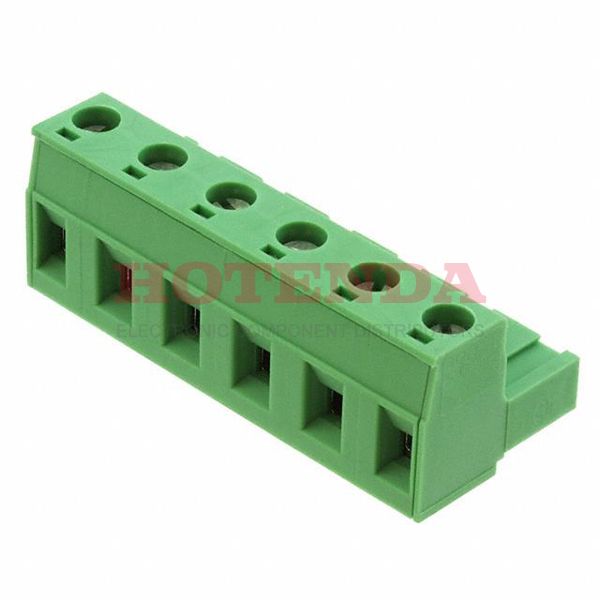

Name: 1767041
Brand: Phoenix Contact
SKU: 1767041
Price: 12.17000 USD
Availability: InStock

new

1767041

Manufacturer part number:1767041

Manufacturer:Phoenix Contact

Description:1767041 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1767041 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Copper
Mount	Cable, Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	166.000009g
Packaging	Bulk
Published	2003
Series	COMBICON GMSTB
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	400V
Additional Feature	PA, 94V-2
Pitch	0.300 7.62mm
Orientation	Right Angle
Depth	18.2mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	CB, CSA, UL, VDE
Number of Contacts	6
Voltage	300V
Max Supply Voltage	500V
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	1kV
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	6
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	18.2mm
Length	43.72mm
Width	43.72mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-2
Lead Free	Lead Free

1767041 Product Details

1767041 Overview

It comes in a Screw, Socket package.The device's mounting type is Free Hanging (In-Line).This product is packaged in a case marked Bulk.It is part of the COMBICON GMSTB Series of products.In addition, there are other features such as PA, 94V-2, to mention only a few.A number of advantages are provided by its Retention Latches (Non-Wire Side) feature.Mounted by Cable, Free Hanging, Plug-In.This chip should not be operated above 500V volts.There are a lot of similarities between this part and other Plug, Female Sockets products.
