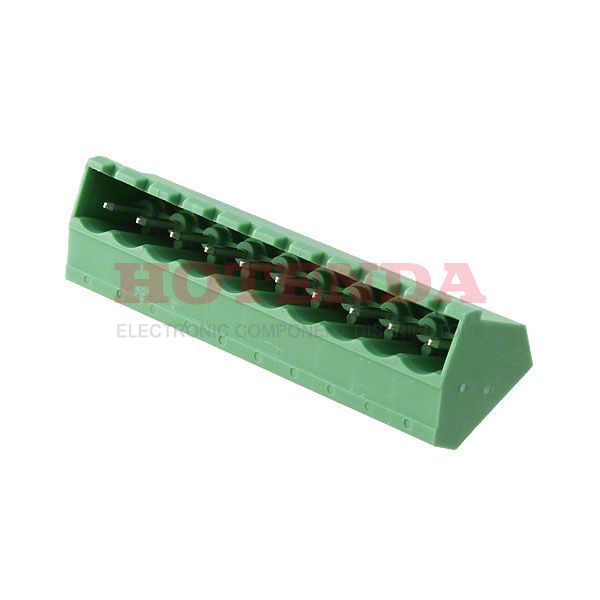

Name: 1767452
Brand: Phoenix Contact
SKU: 1767452
Price: 4.29000 USD
Availability: InStock

new-10%

1767452

Manufacturer part number:1767452

Manufacturer:Phoenix Contact

Description:1767452 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1767452 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	155.999998g
Packaging	Bulk
Published	2012
Series	COMBICON SMSTBA
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA; 94V-2
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	45 deg
Depth	16.5mm
Insulation Height	0.583 14.80mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	12A
Number of Levels	1
Current	10A
Number of Decks	1
Current - UL	15A
Voltage - IEC	630V
Number of Ways	10
Safety Approval	CSA; UL
Header Orientation	45°
Number of Positions Per Level	10
Height	16.5mm
Length	52.8mm
Width	52.8mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1767452 Product Details

1767452 Overview

The packaging is Plug.This device is mounted in the Through Hole position.We pack the product in a Bulk case.It's from the COMBICON SMSTBA Series.There are also other features, like PA; 94V-2, to name a few.By Through Hole, the part is mounted.Many Header, Male Pins, Shrouded (4 Side) products share the same benefits as this part.
