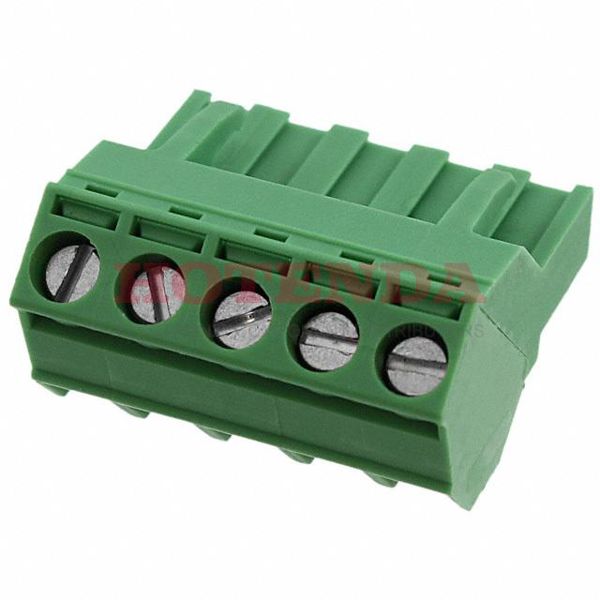

Name: 1768794
Brand: Phoenix Contact
SKU: 1768794
Price: 7.37000 USD
Availability: InStock

new-10%

1768794

Manufacturer part number:1768794

Manufacturer:Phoenix Contact

Description:1768794 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1768794 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	1.50003kg
Packaging	Bulk
Published	2003
Series	COMBICON SMSTB
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Additional Feature	PA, 94V-2
Pitch	0.197 5.00mm
Orientation	Straight
Depth	15.5mm
Insulation Height	0.610 15.49mm
Reach Compliance Code	not_compliant
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	CSA, UL, cULus
Number of Contacts	5
Voltage	300V
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	5
Safety Approval	UL
Plug Wire Entry	225°
Wire Gauge or Range - mm²	0.2-2.5mm2
Screw Size	M3
Stripping Length	7mm
Height	15.5mm
Length	25mm
Width	25.6mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-2
Lead Free	Lead Free

1768794 Product Details

1768794 Overview

This product is packaged in a Screw, Socket cartonMounting type Free Hanging (In-Line) is selected for the device.This product is packaged in a case marked Bulk.This product is in the COMBICON SMSTB Series.There are also features like PA, 94V-2, just to name a few.This feature renders it more powerful in a number of ways because of its Retention Latches (Non-Wire Side) feature.Cable, Free Hanging, Plug-In is used to mount the part.Several of the benefits of this part are also shared by other Plug, Female Sockets products.
