Name: 1771114
Brand: Phoenix Contact
SKU: 1771114
Price: 0.82000 USD
Availability: InStock

new-10%

1771114

Manufacturer part number:1771114

Manufacturer:Phoenix Contact

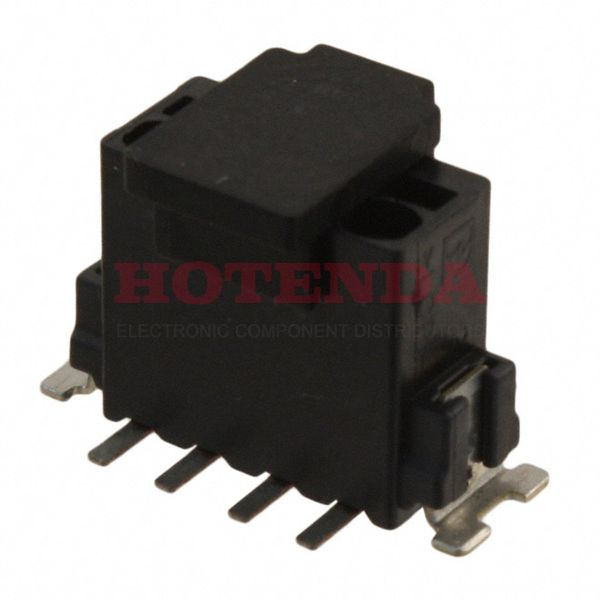

Description:0.098 2.50mm Black Tape & Reel (TR) Liquid Crystal Polymer (LCP) Surface Mount Vertical with Board Screwless - Spring Cage, Tension Clamp 1 Levels 20-26 AWG COMBICON PTSM

Case Package:SOT-23

Datasheet:1771114 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Housing Material	Liquid Crystal Polymer (LCP)
Weight	2.449994g
Packaging	Tape & Reel (TR)
Series	COMBICON PTSM
Published	2010
Feature	Solder Retention
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Color	Black
Voltage - Rated	160V
Pitch	0.098 2.50mm
Orientation	Straight
Current Rating	6A
Number of Contacts	4
Wire Gauge	20-26 AWG
Voltage	150V
Max Current Rating	6A
Number of Levels	1
Current	5A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	24 AWG
Terminal and Terminal Block Type	STRIP TERMINAL BLOCK
Mating Orientation	Vertical with Board
Wire Termination	Screwless - Spring Cage, Tension Clamp
Height	9mm
Length	5mm
Width	12.8mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1771114 Product Details

1771114 Overview

There is a mounting type of Surface Mount for this device.It is necessary to use a Tape & Reel (TR) case for packaging the product.This product is part of the COMBICON PTSM Series.In many ways, its Solder Retention feature makes it more powerful.Surface Mount is used to mount the part.
