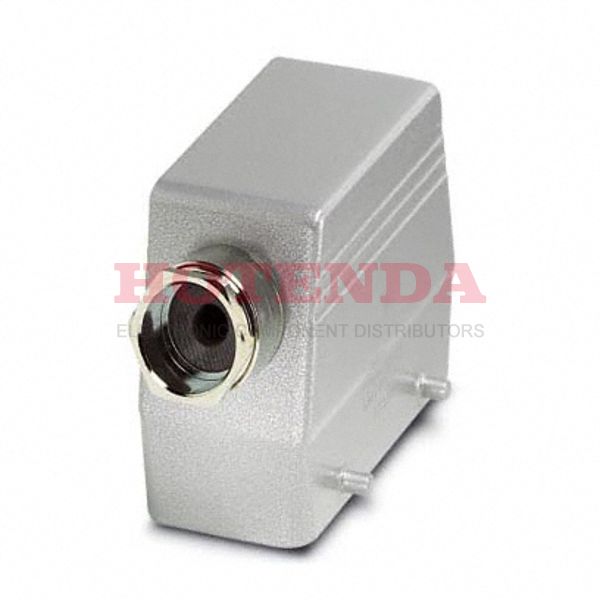

1771503 datasheet pdf and Heavy Duty Connectors - Housings, Hoods, Bases product details from Phoenix Contact stock available on our website
SOT-23
1771503 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Number of Pins
16
Housing Material
Aluminum, Die Cast
Operating Temperature
-40°C~125°C
Packaging
Bulk
Published
2003
Series
HEAVYCON® B
Size / Dimension
3.681Lx1.772W x 2.992 H 93.50mmx45.00mmx76.00mm
Part Status
Obsolete
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
Screw
Connector Type
Hood
Ingress Protection
IP65 - Dust Tight, Water Resistant
Depth
43mm
Style
Side Entry
Reach Compliance Code
unknown
Housing Color
Gray
Connector Support Type
CONNECTOR ACCESSORY
Size
B16
Thread Size
PG21
Lock Location
Locking Clip (2) on Base Bottom
Housing Finish
Powder Coated
Height
75.9968mm
RoHS Status
RoHS Compliant
Lead Free
Lead Free
Ratings
Dust Tight, IP65, Water Resistant
In-Stock:3380 items
1771503 Product Details
1771503 Overview
Packaging for this item is Hood.A Bulk case is used to package the product.A member of the HEAVYCON? B Series.It has 16 pins.There is no operating temperature for the device.
1771503 Features
HEAVYCON? B series
1771503 Applications
There are a lot of Phoenix Contact 1771503 Heavy Duty Connectors applications.
Control panels
Data Technology
Instrumentation
Embedded systems
Telecommunications
Blowers
Military Technology
Electrical substations
Industrial Automation
Anywhere power is distributed
