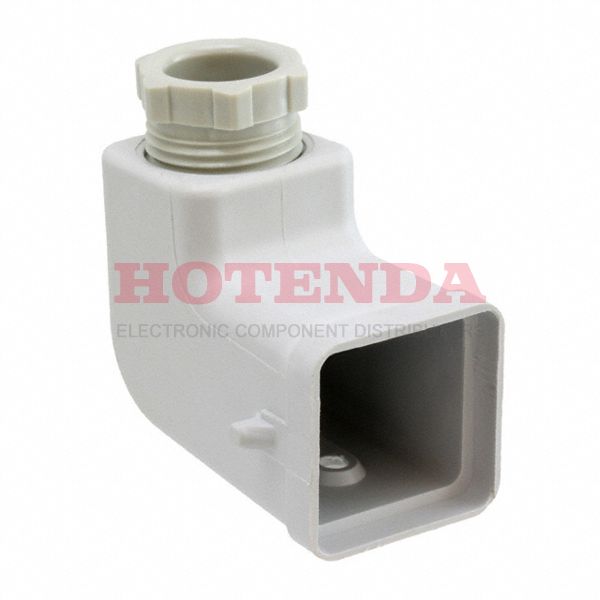

Name: 1772256
Brand: Phoenix Contact
SKU: 1772256
Availability: InStock

new-10%

1772256

Manufacturer part number:1772256

Manufacturer:Phoenix Contact

Description:1772256 datasheet pdf and Heavy Duty Connectors - Housings, Hoods, Bases product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1772256 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Mount	Cable
Housing Material	Polyamide (PA), Nylon
Operating Temperature	-40°C~125°C
Packaging	Bulk
Published	2003
Series	HEAVYCON® D
Size / Dimension	1.043Lx1.043W x 1.890 H 26.50mmx26.50mmx48.00mm
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
Connector Type	Hood - 90°
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Ingress Protection	IP54 - Dust Protected, Water Resistant
Style	Side Entry
Housing Color	Gray
Connector Support Type	TERMINAL BLOCK ACCESSORY
Size	D7
Thread Size	PG11
Lock Location	Locking Clip (1) on Base Bottom
Assembly Item Name	HOUSING
Height	48.006mm
RoHS Status	RoHS Compliant
Lead Free	Lead Free
Ratings	IP54, IP66, Water Resistant

1772256 Product Details

1772256 Overview

The packaging is Hood - 90°.The product is packaged in a Bulk case.A member of the HEAVYCON? D Series.There is a Cable mount on the part.In this case, the device operates at -40°C~125°C Operating Temperature.
