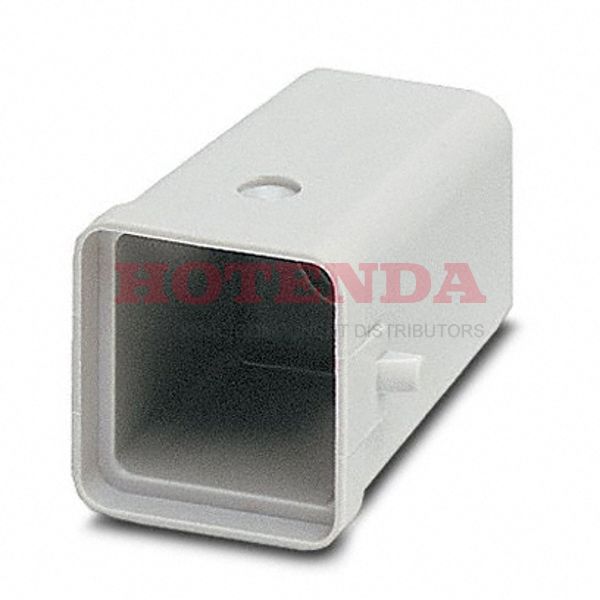

1772269 datasheet pdf and Heavy Duty Connectors - Housings, Hoods, Bases product details from Phoenix Contact stock available on our website
SOT-23
1772269 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
5 Weeks
Mount
Cable
Housing Material
Polyamide (PA), Nylon
Operating Temperature
-40°C~125°C
Packaging
Bulk
Published
2010
Series
HEAVYCON® D
Size / Dimension
1.043Lx1.043W x 2.244 H 26.50mmx26.50mmx57.00mm
Part Status
Obsolete
Moisture Sensitivity Level (MSL)
Not Applicable
Termination
Screw
Connector Type
Hood
Orientation
Straight
Ingress Protection
IP54 - Dust Protected, Water Resistant
Style
Top Entry
Housing Color
Gray
Connector Support Type
CONNECTOR ACCESSORY
Size
D7
Thread Size
PG11
Lock Location
Locking Clip (1) on Base Bottom
Height
56.9976mm
RoHS Status
RoHS Compliant
Lead Free
Lead Free
Ratings
IP54, IP66, Water Resistant
In-Stock:3835 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$15.650318
$15.650318
10
$14.764451
$147.64451
100
$13.928728
$1392.8728
500
$13.140309
$6570.1545
1000
$12.396518
$12396.518
1772269 Product Details
1772269 Overview
Hood packaging is included.A Bulk case is used to package the product.This product is in the HEAVYCON? D Series.Cable is the mounting point for the part.Device runs in -40°C~125°C operating temperature.
1772269 Features
HEAVYCON? D series
1772269 Applications
There are a lot of Phoenix Contact 1772269 Heavy Duty Connectors applications.
LED municipal outdoor and street lighting
Electrical substations
Anywhere power is distributed
Military Technology
Variable speed/frequency drivers
Industrial Automation
Refrigeration control
Embedded systems
Control panels
Measuring & Control Technology
