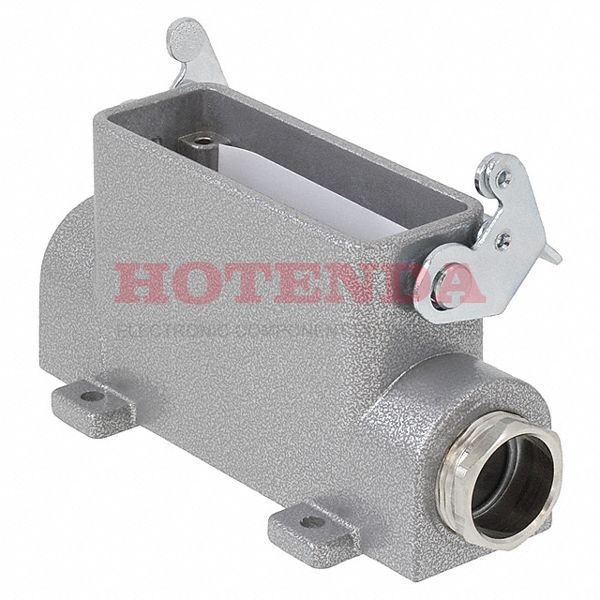

1772476 datasheet pdf and Heavy Duty Connectors - Housings, Hoods, Bases product details from Phoenix Contact stock available on our website
SOT-23
1772476 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
5 Weeks
Mount
Box
Housing Material
Aluminum, Die Cast
Operating Temperature
-40°C~125°C
Packaging
Bulk
Published
2010
Series
HEAVYCON® D
Size / Dimension
4.311Lx1.969W x 2.244 H 109.50mmx50.00mmx57.00mm
Part Status
Obsolete
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
Screw
Connector Type
Base - Box Mount
Orientation
Straight
Ingress Protection
IP65 - Dust Tight, Water Resistant
Style
Side Entry
Housing Color
Gray
Connector Support Type
CONNECTOR ACCESSORY
Size
D25
Thread Size
PG16
Lock Location
Locking Clip (1) on Base Bottom
Housing Finish
Powder Coated
Height
56.9976mm
RoHS Status
RoHS Compliant
Ratings
Dust Tight, IP65, IP66, Water Resistant
In-Stock:3605 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$30.21000
$30.21
10
$27.79200
$277.92
50
$25.67740
$1283.87
100
$24.46880
$2446.88
250
$22.95864
$5739.66
1772476 Product Details
1772476 Overview
A Base - Box Mount package is included with it.Packaging the product involves using a Bulk case.This is from the HEAVYCON? D Series.Box mounts the part.Operating temperature is -40°C~125°C.
1772476 Features
HEAVYCON? D series
1772476 Applications
There are a lot of Phoenix Contact 1772476 Heavy Duty Connectors applications.
Automotive Electronics
Military Technology
Embedded systems
Anywhere power is distributed
Industrial Automation
Variable speed/frequency drivers
Energy efficient lighting (LED)
Datacom
Data Technology
Telecommunications
