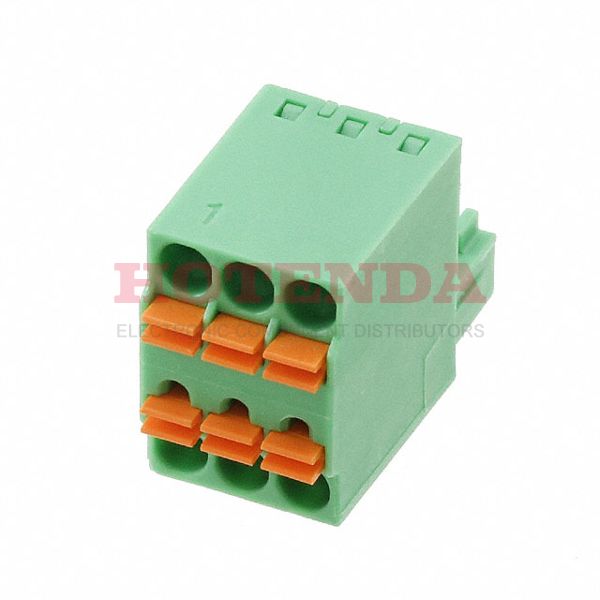

Name: 1772621
Brand: Phoenix Contact
SKU: 1772621
Price: 6.03000 USD
Availability: InStock

new-10%

1772621

Manufacturer part number:1772621

Manufacturer:Phoenix Contact

Description:1772621 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1772621 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2011
Series	COMBICON TFMC
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Type	Plug, Female Sockets
Number of Positions	3
Color	Green
Gender	Female
Voltage - Rated	160V
Pitch	0.138 3.50mm
Orientation	Straight
Insulation Height	0.902 22.90mm
Current Rating	8A
Termination Style	Screwless - Leg Spring, Push-In Spring
Voltage	300V
Max Current Rating	8A
Number of Levels	1 (Mate), 2 (Input)
Current	8A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	24 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	16-24 AWG
Voltage - IEC	320V
Positions Per Level	3 (Mate), 6 (Input)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	10mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1772621 Product Details

1772621 Overview

This device's mounting type is Free Hanging (In-Line).This product is packaged in a case marked Bulk.Specifically, it is one of the products in the COMBICON TFMC Series.The part is mounted by Cable, Free Hanging.This part shares lots of benefits with other Plug, Female Sockets products.
