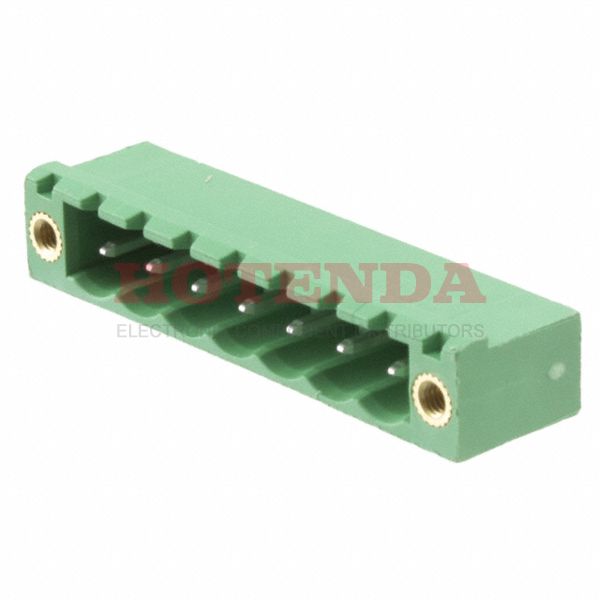

Name: 1776553
Brand: Phoenix Contact
SKU: 1776553
Price: 7.53000 USD
Availability: InStock

new-10%

1776553

Manufacturer part number:1776553

Manufacturer:Phoenix Contact

Description:1776553 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1776553 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Weight	152.999995g
Packaging	Bulk
Published	2011
Series	COMBICON MSTB
Feature	Mating and Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	7
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PBT, UL 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	12mm
Insulation Height	0.339 8.61mm
Current Rating	12A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	12A
Number of Levels	1
Current	12A
Number of Decks	1
Current - UL	15A
Voltage - IEC	400V
Number of Ways	7
Safety Approval	UL; VDE; CSA
Header Orientation	90°, Right Angle
Height	12.1mm
Length	45.72mm
Width	45.72mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1776553 Product Details

1776553 Overview

Packaging is in the form of Plug.It's mounted Through Hole.A Bulk case is used for packaging.It belongs to the COMBICON MSTB Series of products.There are also other features such as PBT, UL 94V-0, to name only a few.This feature renders it more powerful in a number of ways because of its Mating and Mounting Flange feature.By Through Hole, the part is mounted.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (4 Side) products.
