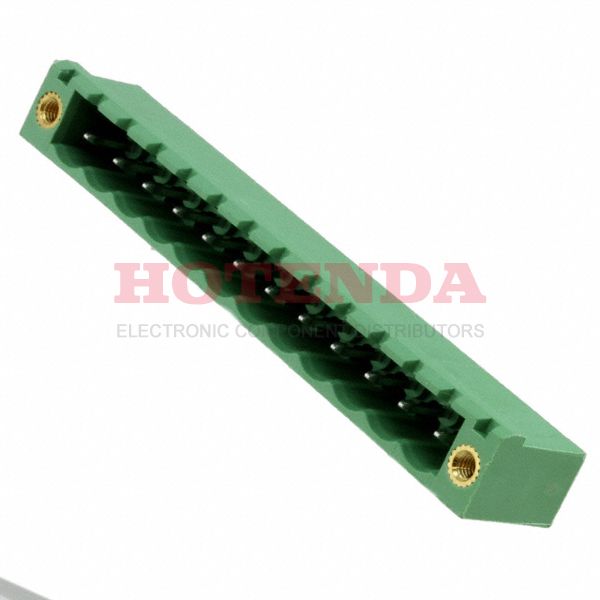

Name: 1776605
Brand: Phoenix Contact
SKU: 1776605
Price: 12.31000 USD
Availability: InStock

new

1776605

Manufacturer part number:1776605

Manufacturer:Phoenix Contact

Description:1776605 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1776605 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Weight	152.999995g
Packaging	Bulk
Published	2012
Series	COMBICON MSTB
Feature	Mating and Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PBT; 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	12mm
Insulation Height	0.339 8.61mm
Current Rating	12A
Termination Style	Solder
Approval Agency	CB, CSA, VDE, cULus
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	12A
Number of Levels	1
Current	12A
Number of Decks	1
Current - UL	15A
Voltage - IEC	400V
Number of Ways	12
Safety Approval	CSA; UL
Header Orientation	90°, Right Angle
Number of Positions Per Level	12
Height	12.1mm
Length	71.12mm
Width	71.12mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1776605 Product Details

1776605 Overview

Packaging is in the form of Plug.It's mounted Through Hole.Bulk cases are used to package the product.It belongs to the COMBICON MSTB Series of products.Other features include PBT; 94V-0, to name just a few.This feature renders it more powerful in a number of ways because of its Mating and Mounting Flange feature.In this case, Through Hole mounts the part.This part shares lots of benefits with other Header, Male Pins, Shrouded (4 Side) products.
