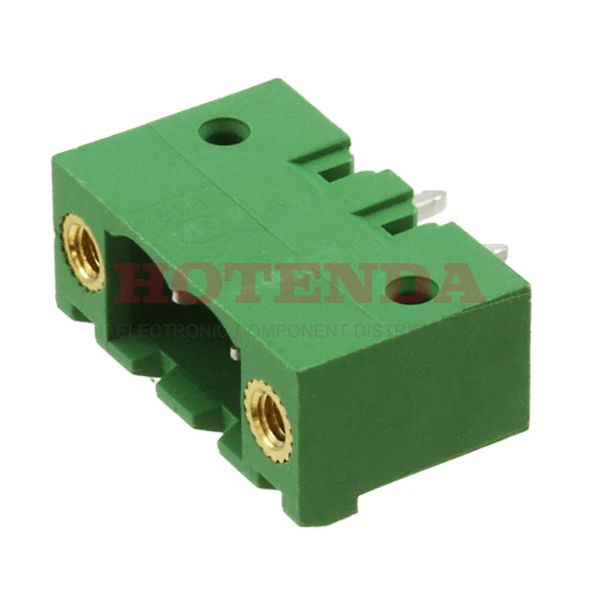

Name: 1776883
Brand: Phoenix Contact
SKU: 1776883
Price: 1.84000 USD
Availability: InStock

new-10%

1776883

Manufacturer part number:1776883

Manufacturer:Phoenix Contact

Description:1776883 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1776883 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Weight	2.573003g
Packaging	Bulk
Published	2011
Series	COMBICON MSTBV
Feature	Mating and Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PBT; 94V-0
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Orientation	Straight
Depth	8.6mm
Insulation Height	0.472 12.00mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.154 3.90mm
Max Current Rating	12A
Number of Levels	1
Current	12A
Number of Decks	1
Voltage - IEC	400V
Number of Ways	2
Safety Approval	UL; CSA; GL
Header Orientation	Vertical
Number of Positions Per Level	2
Height	15.9mm
Length	20mm
Width	20mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1776883 Product Details

1776883 Overview

Packaging is Plug.The device's mounting type is Through Hole.It is necessary to use a Bulk case for packaging the product.A product of the COMBICON MSTBV Series, it belongs to the range of products of that series.There are also other features such as PBT; 94V-0, to name only a few.A number of advantages can be derived from its Mating and Mounting Flange feature.It's mounted by Through Hole.Other Header, Male Pins, Shrouded (4 Side) products benefit from this part as well.
