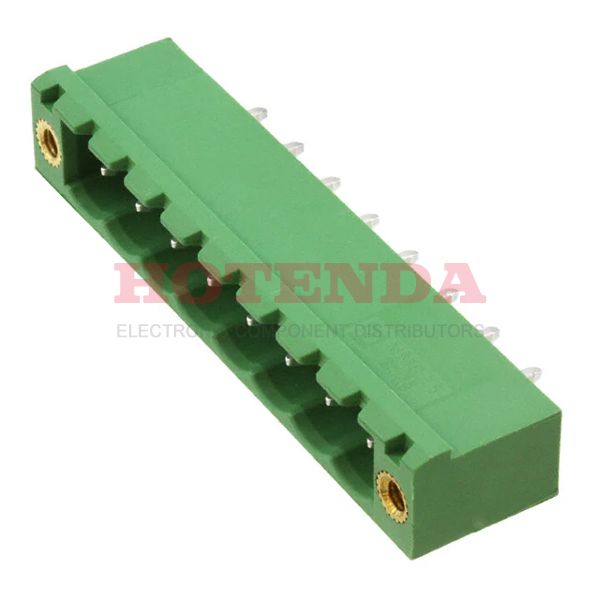

Name: 1776948
Brand: Phoenix Contact
SKU: 1776948
Price: 6.15000 USD
Availability: InStock

new-10%

1776948

Manufacturer part number:1776948

Manufacturer:Phoenix Contact

Description:1776948 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1776948 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Weight	1.50003kg
Packaging	Bulk
Published	2011
Series	COMBICON MSTBV
Feature	Mating and Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	8
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PBT, 94V-0
Pitch	0.197 5.00mm
Insulation Height	0.472 12.00mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.154 3.90mm
Number of Levels	1
Current	12A
Number of Decks	1
Voltage - IEC	400V
Number of Ways	8
Safety Approval	UL
Header Orientation	Vertical
Height	15.9mm
Length	8.6mm
Width	50mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1776948 Product Details

1776948 Overview

A Plug packaging is included.Through Hole is the type of mounting for the device.It is necessary to use a Bulk case for packaging the product.The product is a member of the COMBICON MSTBV Series.There are also features like PBT, 94V-0, just to name a few.A number of advantages can be derived from its Mating and Mounting Flange feature.Mounted by Through Hole.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (4 Side) products.
