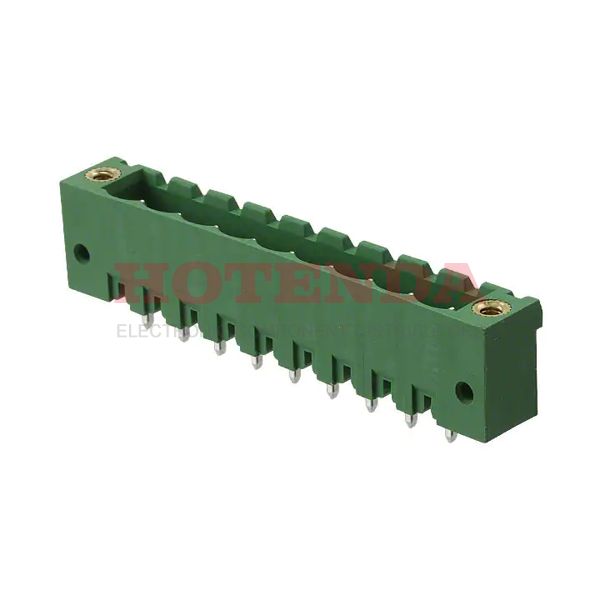

Name: 1776951
Brand: Phoenix Contact
SKU: 1776951
Price: 6.67000 USD
Availability: InStock

new-10%

1776951

Manufacturer part number:1776951

Manufacturer:Phoenix Contact

Description:1776951 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1776951 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Weight	1.50003kg
Packaging	Bulk
Published	2011
Series	COMBICON MSTBV
Feature	Mating and Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Voltage - Rated	250V
Pitch	0.197 5.00mm
Orientation	Straight
Depth	8.6mm
Insulation Height	0.472 12.00mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.154 3.90mm
Max Current Rating	12A
Number of Levels	1
Current	12A
Number of Decks	1
Voltage - IEC	400V
Number of Ways	9
Safety Approval	UL
Header Orientation	Vertical
Number of Positions Per Level	9
Height	15.9mm
Length	8.6mm
Width	55mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1776951 Product Details

1776951 Overview

You'll get Plug packages.Through Hole is the mounting type of the device.An Bulk case is utilized for packaging the product.Product number COMBICON MSTBV belongs to the COMBICON MSTBV Series.It is more powerful in many ways due to its Mating and Mounting Flange feature.There is a mounting hole at Through Hole.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (4 Side) products.
