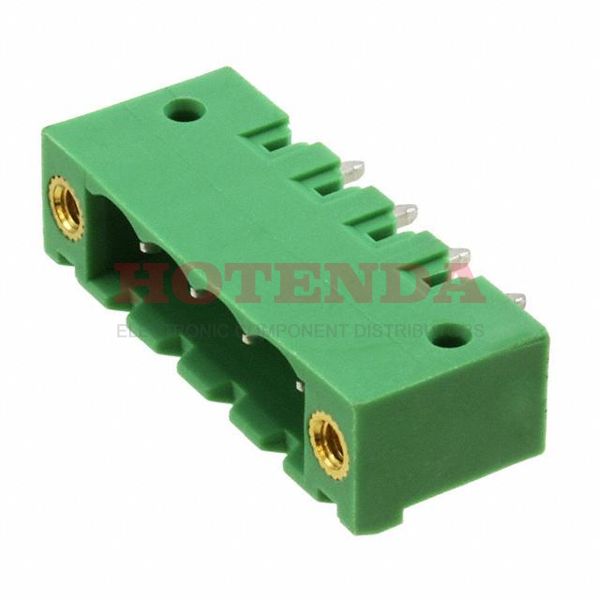

Name: 1777099
Brand: Phoenix Contact
SKU: 1777099
Price: 4.45000 USD
Availability: InStock

new-10%

1777099

Manufacturer part number:1777099

Manufacturer:Phoenix Contact

Description:1777099 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1777099 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Weight	154.999997g
Packaging	Bulk
Published	2010
Series	COMBICON MSTBV
Feature	Mating and Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Min Operating Temperature	-40°C
Color	Green
Number of Rows	1
Voltage - Rated	250V
Pitch	0.200 5.08mm
Orientation	Straight
Depth	8.3mm
Insulation Height	0.472 12.00mm
Reach Compliance Code	not_compliant
Current Rating	12A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.154 3.90mm
Max Current Rating	12A
Number of Levels	1
Current	12A
Contact Mating Finish	Tin
Number of Decks	1
Voltage - IEC	630V
Number of Ways	4
Safety Approval	CB; CCA; CSA; CUL; EAC; GL; RS
Header Orientation	Vertical
Number of Positions Per Level	4
Fastening Method	CONNECTOR
Height	15.9mm
Length	30.48mm
Width	30.48mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1777099 Product Details

1777099 Overview

A Plug packaging is included.Through Hole is the mount type.We pack the product in a Bulk case.The product belongs to the COMBICON MSTBV Series.There's a minimum temperature of -40°C for this device.It is more powerful in many ways due to its Mating and Mounting Flange feature.There is a mounting hole at Through Hole.Many Header, Male Pins, Shrouded (4 Side) products share the same benefits as this part.
